Battery Charger

30 Vdc & 110Vdc

Industrial heavy duty constant current limiting thyristor controlled Rectifier/ Battery Charger are designed for all applications requiring DC Power Supply.Output rating: 24/30/48/110/220 VDC and 3Amps – 1200Amps.TPU series are single-phase and three-phase industrial battery chargers, specifically designed and customised to supply constant DC voltage to critical loads, and may recharge any types of rechargeable batteries like nickel cadmium or sealed lead-acid battery.The TPU series, single-phase/three phase rectifiers, employ 6-pulse/ 12-pulse thyristor bridge, fully controlled by PCB board.

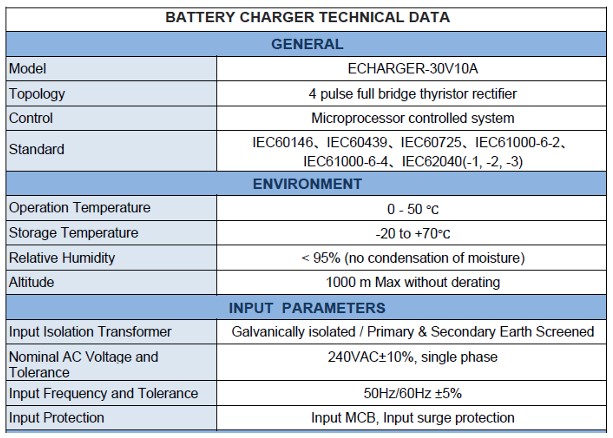

TECHNICAL DATA

Full Product Specifications

BrandElektrika
Model
Normal voltage30/110 Vdc
Normal frequency50 Hz
Current rating10(100) Amp
