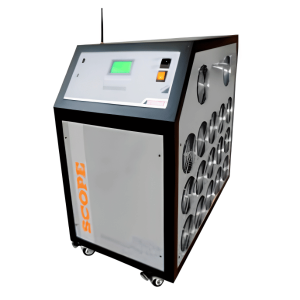

Battery banks have become an inseparable part of uninterrupted or back-up power supply arrangements in various industries like Power, Telecom, IT etc. In substations the critical protection, control & communication systems run on battery power. Hence the reliability of these battery banks is crucial to ensure smooth operation of equipment which they are serving. The capacity of battery may get reduced significantly before the expected life span of battery due to various reasons. The only way to assess the continual health of battery banks is periodical maintenance inspection & testing. Conducting a discharge test on batteries is most effective way to check the battery capacity.SCOPE introduces BLUe Series Battery Loading Units; these are moveble instruments for controlled & monitored discharge of batteries. They are designed for integrated site discharge test, design & QC test and also for monitoring discharge process of battery bank with connected load. Each single autonomous unit having built-in display, keypad and wireless communication with computer makes it very easy to use. It comes in different configurations ranging from 12V to 380V discharge voltages and 50A to 300A discharge currents.Various options are available to control & monitor the discharge process. With the help of optional Cell Monitoring Unit – CellMon, voltage of each individual cell can be monitored & data sent to main BLUe unit and then from main unit to computer via wireless communication. Each BLUe unit is supplied with computer downloading & analysis software for real time monitoring of discharge process.

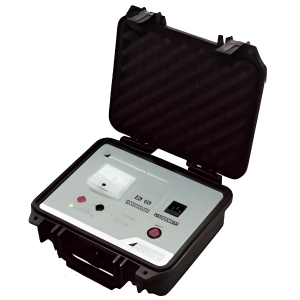

Audio Frequency Generator has been designed to be used for cable route tracing, pin-pointing of low resistance welded faults, joint location and cable identification.

After excavation, sometimes it is confusing to identify the right cable from bunch of similar appearance cables. Cable identification is very important for safety of field personnel – Cutting a wrong cable can be fatal. So, we require a Cable Identification System having current direction facility to identify the wanted cable.Cable Identification is the most critical and safety related sequence during all the procedure of cable fault location. The correct identification of a cable out of a bundle of cables, where most of them can be cables in service, has to be carried out not only carefully, but also by means of an instrument widely eliminating the possibility of human error or misinterpretation.The Cable Identification System, CFL CIS from SCOPE is the ultimate solution for identifying wanted cable from a bunch of cables in a trench, pit or cable rack. The SCOPE’s Cable Identification System CFL CIS is designed to fulfill these most important safety aspects.

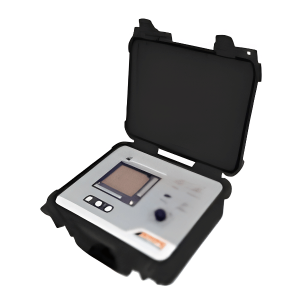

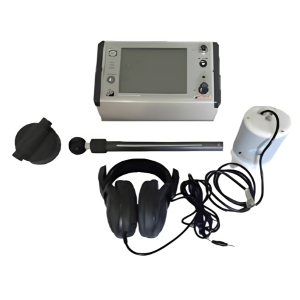

SCOPE offers CFL Series, Cable Fault Locator Test System, the ultimate solution for locating all types of underground cable faults in minimum time, thus saving long outages and consequential revenue loss & inconvenience.SCOPE offers a full range of products required for fault location of LT/HT power and telecom cables. It includes various models of Surge Generators (Thumpers), Pre-Loca-tors, Pin-Pointers, SIM Filters and Audio Generators.The utility of Surge Generators can be further enhanced by optional in-built features like DC Hi-pot, Burn Down and Sheath Fault Locator.Appropriate models can be chosen and product configuration can be optimized based on application.Various constituent models of Cable Fault Locator Test System are:Surge Generator (Thumper): CFL SG 1605 / 1610 / 1620 / 3210 / 3215 / 3220 Pre Locator: CFL PL2 / PL2+ / PL3 / PL3+ / PL4+Pin Pointer cum Route Tracer: CFL PP3 / PP3+ Audio Generator: CFL AG2SIM Filter: CFL SIMFCable Identification System: CFL CIS Soft Discahrge Rod: CFL DDR seriesCable Fault Surge Generator: CFL SG SeriesCFL SG Series offer voltages up to 16kV / 32kV and energy up to 2000J.

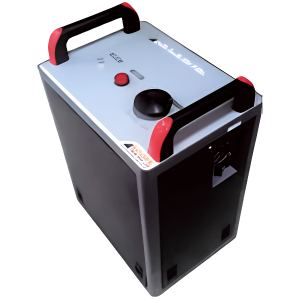

SIM Filter is a passive filter which uses energy of surge generator for stabilizing the SIM Filter, CFL SIMF works in conjunction with SCOPE’s Cable Fault Pre Locator CFL Cable Fault Surge Generator, CFL SG Series, up to 16kV
