BLUe Series

Battery Loading Unit

Battery banks have become an inseparable part of uninterrupted or back-up power supply arrangements in various industries like Power, Telecom, IT etc. In substations the critical protection, control & communication systems run on battery power. Hence the reliability of these battery banks is crucial to ensure smooth operation of equipment which they are serving. The capacity of battery may get reduced significantly before the expected life span of battery due to various reasons. The only way to assess the continual health of battery banks is periodical maintenance inspection & testing. Conducting a discharge test on batteries is most effective way to check the battery capacity.SCOPE introduces BLUe Series Battery Loading Units; these are moveble instruments for controlled & monitored discharge of batteries. They are designed for integrated site discharge test, design & QC test and also for monitoring discharge process of battery bank with connected load. Each single autonomous unit having built-in display, keypad and wireless communication with computer makes it very easy to use. It comes in different configurations ranging from 12V to 380V discharge voltages and 50A to 300A discharge currents.Various options are available to control & monitor the discharge process. With the help of optional Cell Monitoring Unit – CellMon, voltage of each individual cell can be monitored & data sent to main BLUe unit and then from main unit to computer via wireless communication. Each BLUe unit is supplied with computer downloading & analysis software for real time monitoring of discharge process.

Measurement

Easy user interface with direct display of voltage & discharge current makes discharging a very easy task. Different models cover different types of cells (1.2V, 2V, 6V and 12V) and battery banks (24V, 48V, 110V, 220V and 380V). Discharge time, Discharge capacity, cell cut-off voltage & total cut-off voltage these are the four options available in BLUe to stop/auto shutdown the discharging process.

The optional CellMon – Data Acquisition Unit monitors discharging values of each cell & could be viewed on the LCD display of the instrument or computer simultaneously by using the analyzing software. Wireless communication technology enables it to continuously monitor & display the real time discharge process of all individual cells via monitoring terminal. Thus surveillance of each cell is done as well as suspected cell can be targeted & removed.

Optional Cell Monitoring Unit – CellMon

CellMon contiously monitors voltage of each cell connected to it and wirelessly sends data to BLUe main unit. It is rugged and capable to monitor all type of batteries (1.2V, 2V, 6V and 12V). Single CELLMon can be connected with 12 cells of 1.2V, 2V or 4 cells of 6V / 12V. BLUe can record overall voltage discharge current & discharge capacity even without CELLMon

TECHNICAL DATA

Full Product Specifications



BLUe0512/05130522/0523084208521111/11121120A

/1120 B

1121/11221131
ApplicationTTTWPT/PT/PT/P


Discharge Voltage : Current



48V: 200 /

300A

24V: 200 /

300A

48V: 200 /

300A

24V: 100A

36V: 150A

48V: 200A

80V: 200A

12V: 100A

24V: 200A

36V: 200A

48V: 200A

80V: 200A



110V: 100

/ 200A

12V: 50 /

50A

110V: 50 /

25A

48V: 100 /

200A

110V: 100

/

200A



12V: 100A

24V: 50A

110V: 75A

AccuracyCurrent : Value ± 1%; Voltage : 0.5%
ResolutionCurrent : 0.1 A or 0.5% of range whichever is higher; Voltage : 0.1V
PMax (kW)11 / 16.511 / 16.518.418.412.6 / 256.5 / 3.2512.6 /

25

9.5

Application : P – Power Utility, T – Telecom, U – UPS, W – Wide Voltage Range

Related Products

Sonel MIC-5050 insulation resistance meter constitute a reliable tool to measure insulation resistance up to 20 TΩ. The instrument is designed for control tests of electric shock protection in AC power networks. It is used to carry out measurements whose results determine the safety condition of the installation.The meter is recommended for electric power services that inspect the condition of electroinsulating materials.

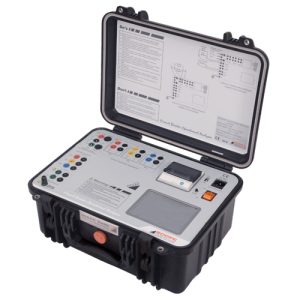

HISAC Ultima – new generation Circuit Breaker Dynamic Test Set from SCOPE …. The ultimate solution for testing Circuit Breakers of all types. HISAC Ultima is the most complete analyser for checking the dynamic performance of CBs in live EHV switchyards upto 765 kV.HISAC Ultima can carry out Dynamic Contact Resistance Measurement on SIX breaks of THREE poles in one operation thereby significantly reducing stress on CB & testing downtime.HISAC Ultima with DCRM+ ensures end users safety by providing Dual Earth Test, in which Circuit Breaker will be grounded from both sides while conducting the test.It offers flexibility to create pre-programmed Test Plans including all test settings for all types of circuit breakers available in a switchyard that can simply be recalled at the time of actual testing. This saves you from doing all settings in switchyards.The Analysis software offers a range of utilities which enables effective Condition Monitoring of CB by comparing present test data with previous signatures and predicting future performance.
