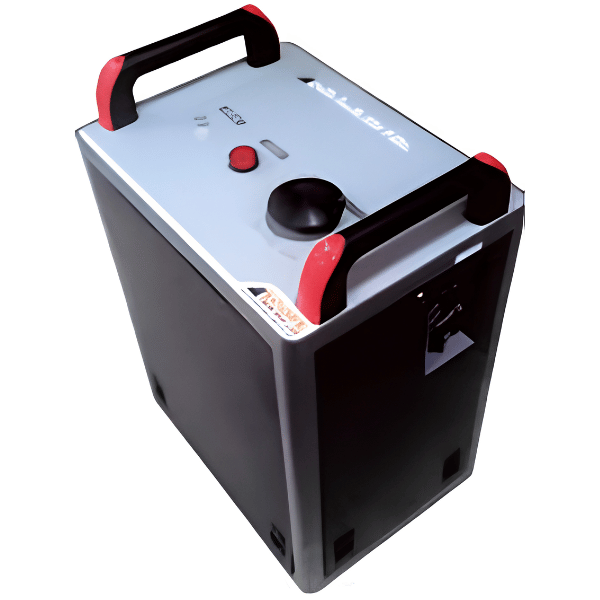

Cable Fault SIM Filter : CFL SIMF

SIM Filter is a passive filter which uses energy of surge generator for stabilizing the SIM Filter, CFL SIMF works in conjunction with SCOPE’s Cable Fault Pre Locator CFL Cable Fault Surge Generator, CFL SG Series, up to 16kV

TECHNICAL DATA

Full Product Specifications

  • Arc Stabilization Time : ≥20mS
  • HV Input : 35kV DC Negative Polarity
  • Input Power Supply : AC 230V ± 10%, 50 ±1Hz
  • Environment : -10°C to 50°C, 95% RH (Non-condensing)
  • Dimension : 380 x 282 x 535 mm
  • Weight : 25 kg
