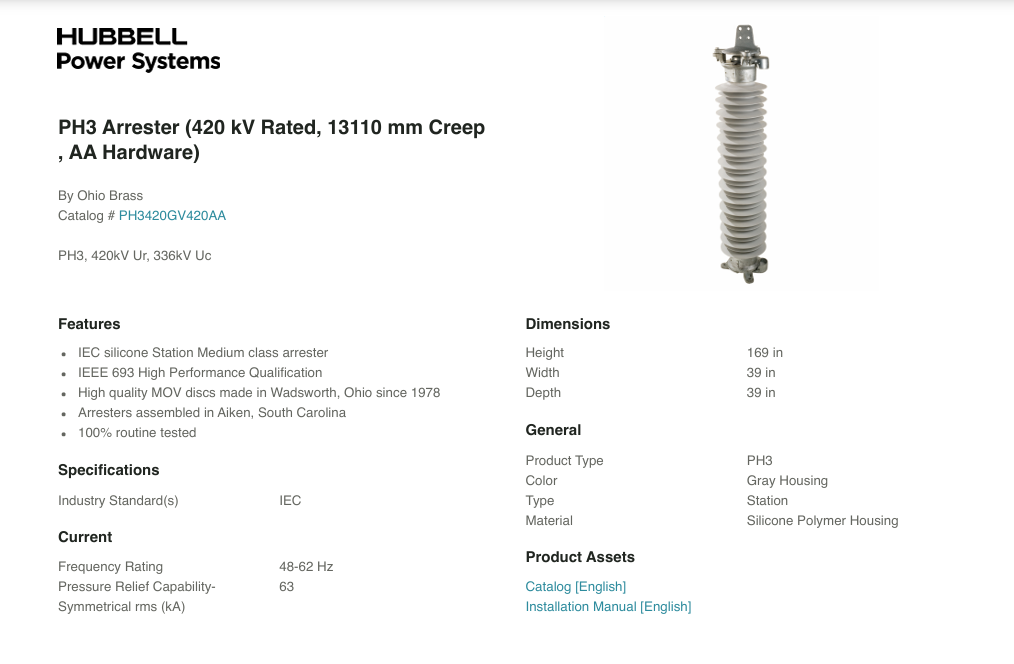

PH3 Arrester (420 kV Rated, 13110 mm Creep , AA Hardware)
PH3 Arrester (420 kV Rated, 13110 mm Creep , AA Hardware) - Image 2
PH3 Arrester (420 kV Rated, 13110 mm Creep , AA Hardware) - Image 3
PH3 Arrester (420 kV Rated, 13110 mm Creep , AA Hardware) - Image 4

PH3 Arrester (420 kV Rated, 13110 mm Creep , AA Hardware)

STATION MEDIUM
Brand: OHIO BRASS
Catalog ID:PH3420GV420AA

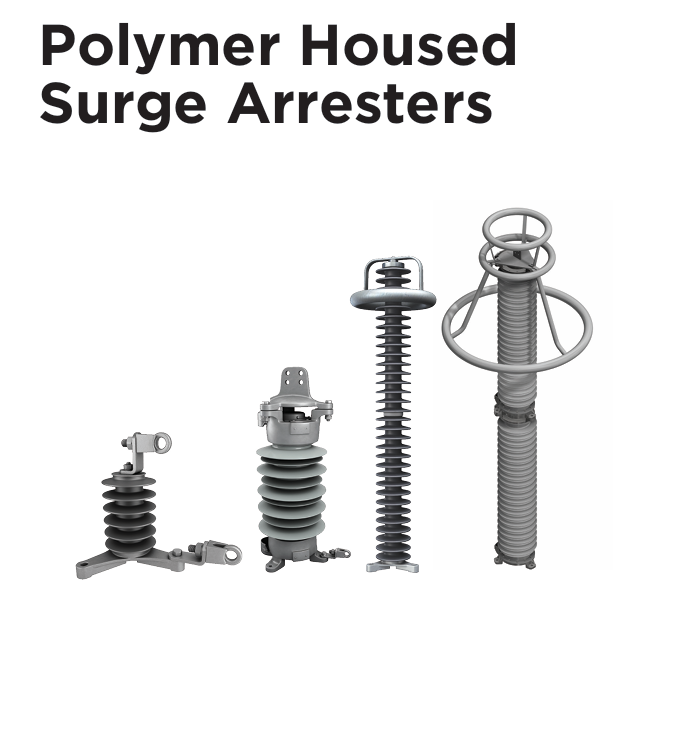

IEC Station Medium / High Quality Polymer Housed Hollow Core Surge Arrester
  • IEC silicone Station Medium class arrester
  • IEEE 693 High Performance Qualification
  • High quality MOV discs made in Wadsworth, Ohio since 1978
  • Arresters assembled in Aiken, South Carolina
  • 100% routine tested

TECHNICAL DATA

Full Product Specifications

General

Catalog NumberPH3420GV420AA
ColorGray Housing
MaterialSilicone Polymer Housing
Product TypePH3
Type

Station

Dimensions

Depth39 in
Height169 in
Width39 in

Electrical Ratings

Frequency Rating48-62 Hz
Pressure Relief Capability-Symmetrical rms (kA)63

Certifications And Compliance

Industry Standard(s)IEC
