Quadri*Sil Horizontal Line Post Insulator

Quadri*Sil Horizontal Line Post Insulator

Brand:OHIO BRASS
Catalog ID: P300042S0130

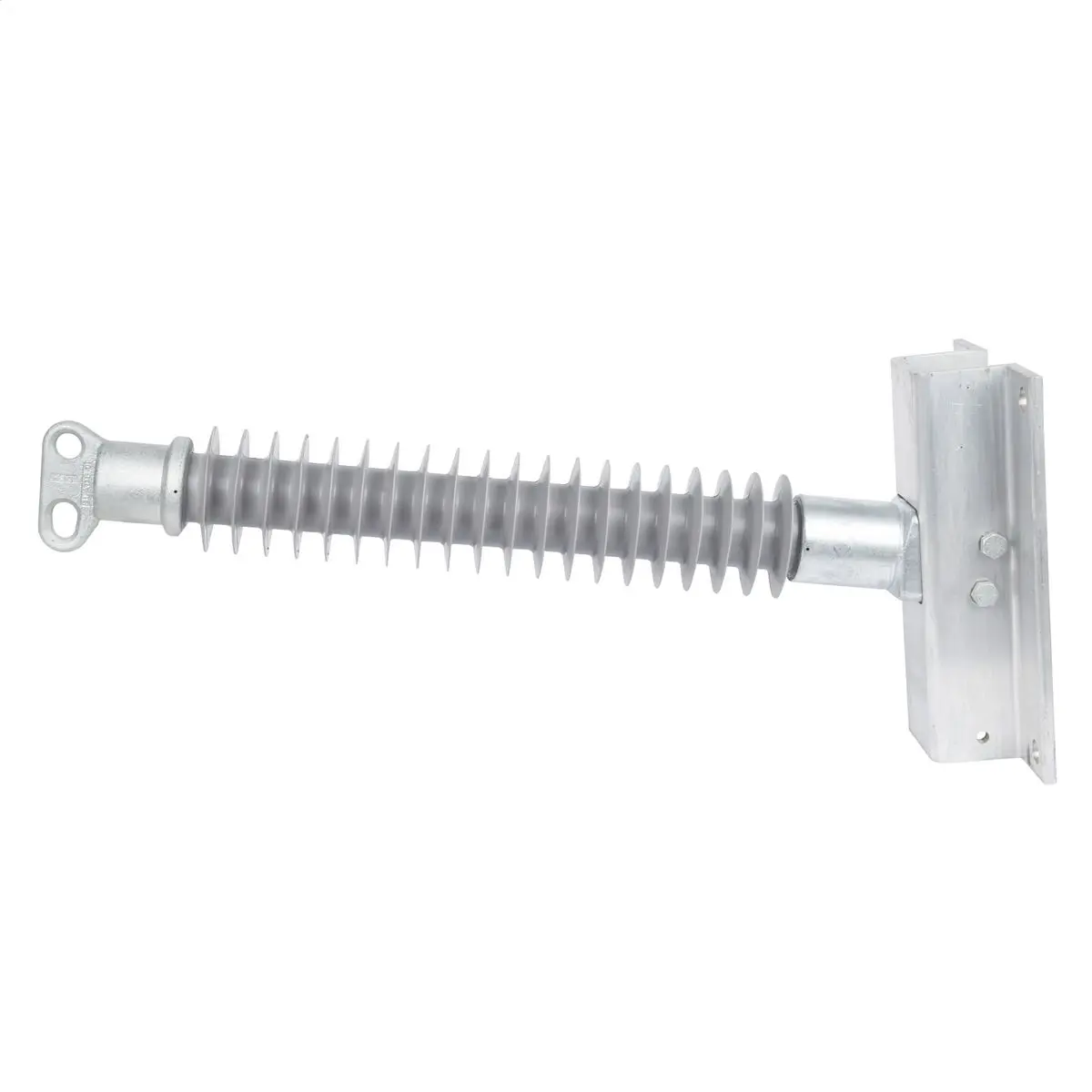

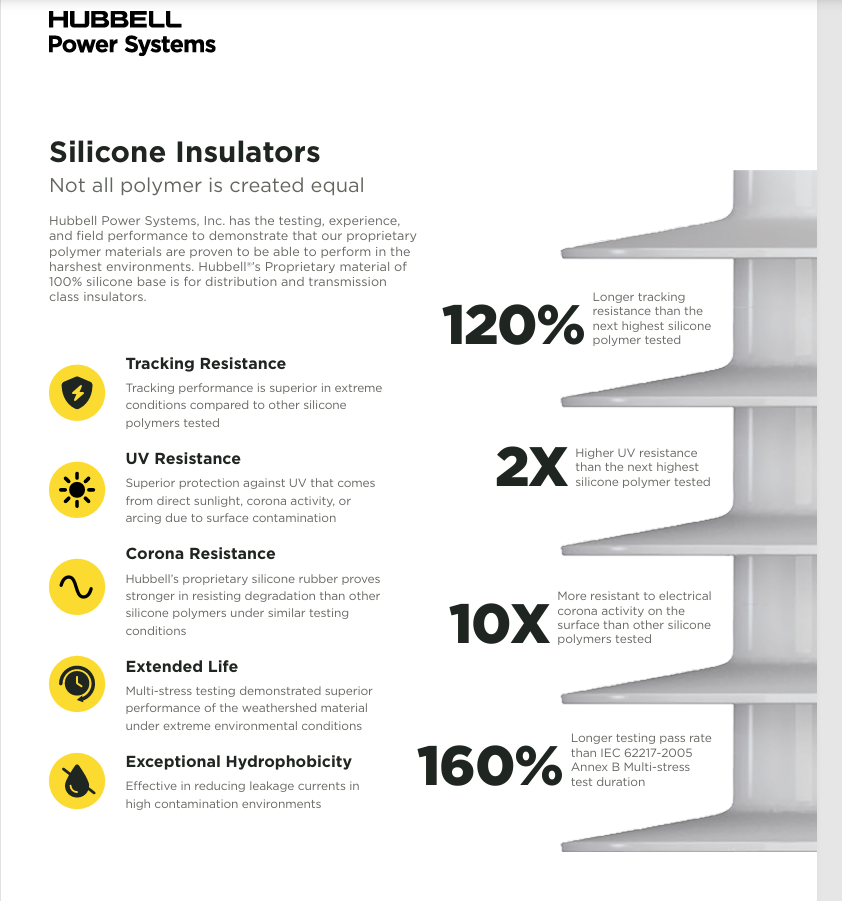

3″ Line Post, Standard Leak, Two Hole Blade, Steel Flat Base with 8″x10″ holes for 3/4″ bolts, 9″x13″ holes for 7/8″ bolts, and 14″ CL holes for 1″ bolts.The Quadri*Sil® transmission line post insulator embodies the latest in polymer insulator design that combines a patented revolutionary four-point sealing system together with electrical grade corrosion resistant direct draw fiberglass rod and proprietary silicone polymer to provide the highest quality, lab tested, and field proven insulator on the market with a 3″ core rod for increased mechanical strength.Made from hydrophobic silicone polymer

TECHNICAL DATA

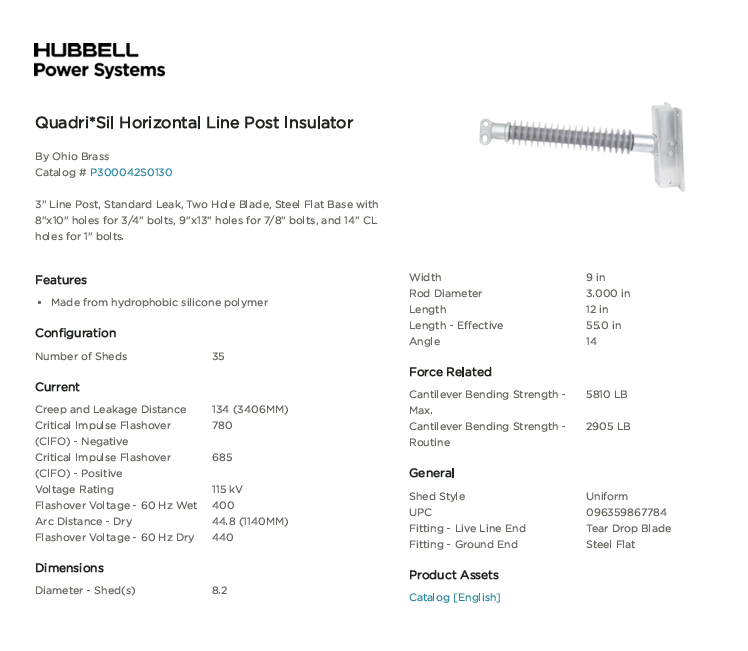

Full Product Specifications

General
Cantilever Bending Strength – Max.	5810 LB
Cantilever Bending Strength – Routine	2905 LB
Catalog Number	P300042S0130
Fitting – Ground End	Steel Flat
Fitting – Live Line End	Tear Drop Blade
Number of Sheds	35
Shed Style	Uniform
UPC	096359867784
Dimensions
Angle	14
Diameter – Shed(s)	8.2
Length	12 in
Length – Effective	55 in
Rod Diameter	3 in
Width	9 in
Electrical Ratings
Arc Distance – Dry	44.8 (1140MM)
Creep and Leakage Distance	134 (3406MM)
Critical Impulse Flashover (CIFO) – Negative	780
Critical Impulse Flashover (CIFO) – Positive	685
Flashover Voltage – 60 Hz Dry	440
Flashover Voltage – 60 Hz Wet	400
Voltage Rating	115 kV
Force Related
Cantilever Bending Strength – Max.	5810 LB
Cantilever Bending Strength – Routine	2905 LB
Configuration
Number of Sheds	35
