Universal Modem

2G to 5G Universal Modem for versatile and retrofitting application

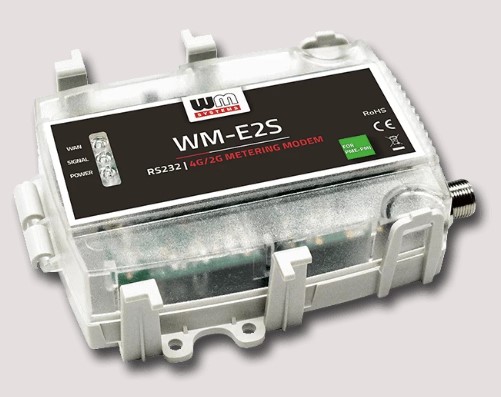

Cellular modem specifically designed for PME-PMI meters. Available for LTE Cat.4 / 3G / 2G, LTE Cat.1 / 2G, LTE Cat.M and Cat.NB / 2G networks.Our company develops cellular modems that work smoothly and are fully compatible with the 3-phase PME-PMI electricity meters. This device was designed to be fully compliant with all PME-PMI standards. Our cellular modems represent a future-proof migration solution to the LTE network with the same functionality, on higher data speed. Configuration and firmware updates can be done remotely, minimizing the need for costly site visits.This external modem can be mounted using a DIN-rail and connected to the meter through an RJ45 cable. It can be configured to “push” the data it reads from the meter to the HES periodically at pre-programmed intervals or triggered by an alarm/event (for example, power outage, cover removal, reverse run etc.).The modem reads actual and stored consumption data, recorded event log, load profile data, and can be used to read or modify certain parameters of the meter remotely. The device can be powered from the RJ45 connector.It can be accessed remotely through the cellular network and it can send data on the Internet by using an APN.The modem is fully configurable by our WM-E Term^®software.

Key Features & Capabilities

Utility companies
Meter data transmission to HES
Smart metering
Industrial measurement

TECHNICAL DATA

Full Product Specifications

Main features

Cellular module order options:
- 4G LTE Cat.4 / 3G / 2G
- 4G LTE Cat.1 – 2G or 2G/3G “fallback”
- LTE Cat.M / Cat.NB with 2G “fallback”
External modem in a compact design (separated from the meter)

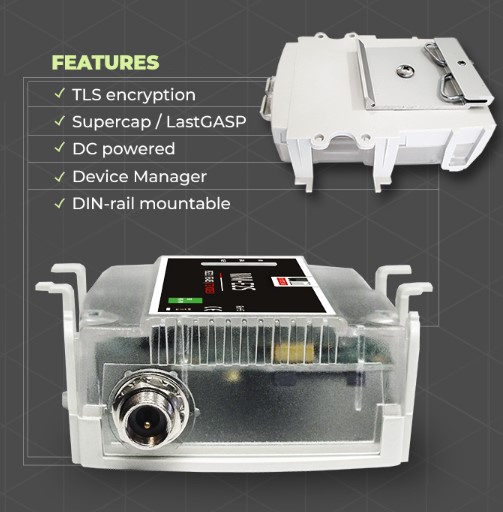

It can be fastened securely by its DIN-rail adapter
DC power supply from the meter
RS232 meter connection (RJ45)

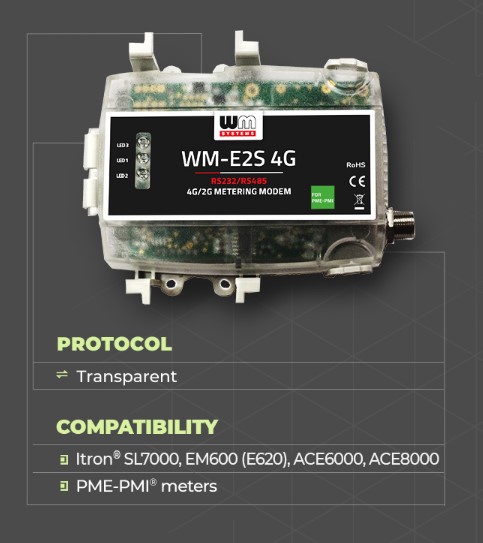

Compatibility with PME-PMI^® electricity meters (Itron^® ACE6000, Landis+Gyr^® ZMG416, Enedis^® NOI CPT-36E meter types)
IEC 62056-21 protocol, transparent mode
CSData call
Optional „push” mode (FTP, IEC or SMS triggered)
TLS encyption (optional)
Supercapacitor (for power outage), LastGASP notification – order option
Remote & safe firmware updates
WM-E Term^®configuration tool
Device Manager^® software (order option)
