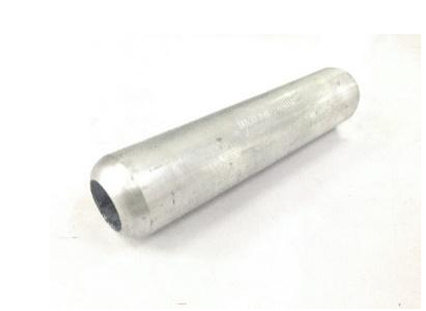

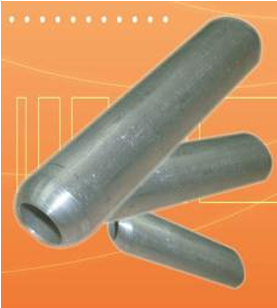

CRIMPING FERRULES

These aluminium sleeves are used for
non tension connections in MV and LV
aluminium underground cables
applications.
Equal cross-section under the reference
XG8BM
Different cross-section under the
reference XNB BM.
These sleeves are made of pure
aluminium
Accept cables according to NFC 32013
and IEC 228
To be crimped by deep stepped
indentation
Delivered with compound.

Product successfully added to the Quote List

Key Features & Capabilities

Range from 16 to 1200mm2 for equal
cross-section
25-16mm2 to 240-185mm2 for
different cross-sections.
Crimped deep step indentation.
Blind Hole
Spherical design
Compliance with specification c33090
1, electrical test performances in
accordance with NFC 63-081 Class A
and IEC 1238-1 Class A
