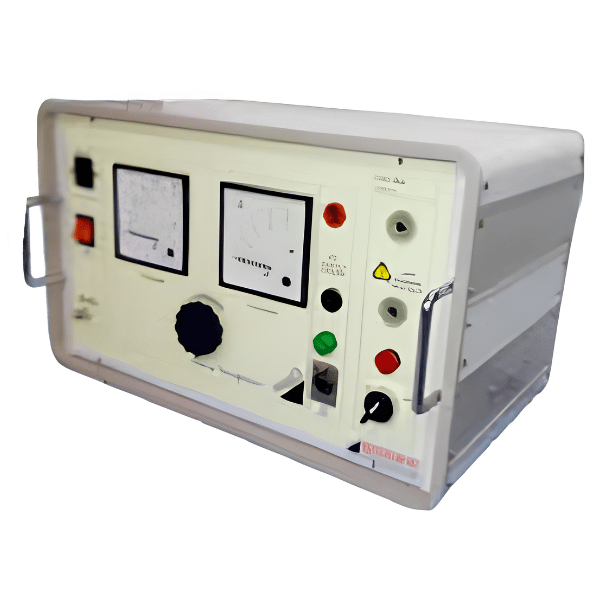

Step-Up Transformer

MagD is specially designed to cater the needs of testing of Instrument Transformers. Before new systems are put into service or after any occurrence of fault, Instrument Transformers need to be tested for their outputs. It is to be ensured that Instrument Transformers give proper outputs to protection relays.
  • Prepares excitation curves quickly and easily
  • Knee–point test of CTs
  • De-magnetise transformer cores
  • Conducts turns-ratio test of voltage transformers
  • Inbuilt voltmeter and ammeter
  • HV and LV outputs available separately
  • Online switching between HV and LV outputs
  • Visual Indicators for HV/LV output ON
  • Two-Hand operation enhances user safety
  • Interlocking feature for Variac Zero position for user safety
  • Thermal cut-off for instrument and user safety
  • Supplied with specially designed high voltage cables and rugged carrying case

TECHNICAL DATA

Full Product Specifications

ParametersMagD
Mains input supply230 V AC ± 15%, 50 Hz ± 10%
ProtectionThermal cut-off , Variac zero interlock, Two-hand control
Dimensions– 500 x 230 x 300 mm
Voltmeter0 – 250V AC for LV out, 0 – 2.2 / 3 / 5 kV AC for HV out
LV output0V to 250V AC, 8A; Continuous
Operating temperature0 to 50�C
HumidityUp to 95% RH, non-condensing

Models Available

ParametersMagD 20MagD 21MagD 30MagD 31MagD 50MagD 51
HV & LV OutputHV OnlyBothHV OnlyBothHV OnlyBoth
HV Output0-2200V, 0.5A Continuous,

1A for 35 Sec, 10min OFF

0-3000V, 0.4A Continuous

0.8A for 35Sec,10min OFF

0-5000V, 0.3A Continuous

0.6A for 35Sec, 10min OFF
