Overhead Mid Span Joint
Overhead Mid Span Joint - Image 2
Overhead Mid Span Joint - Image 3
Overhead Mid Span Joint - Image 4

Overhead Mid Span Joint

Cable jointer for HV maintenance work
  • Brand: Hubbel (US)
  • Material:
    • Shell – High Strength Aluminum Alloy
    • Jaws – Aluminum Alloy
  • ANSI C119.4, full tension, Class A connector (95% of conductor breaking strength unless otherwise noted)
  • Color coded end funnel guides for easy identification
  • Factory inhibitor protected
  • Fastest method of splicing aluminum, aluminum alloy and ACSR conductor

TECHNICAL DATA

Full Product Specifications

Related Products

Neutral Link

Neutral link 100A was designed for continuous operation on a 3-phase, 415V, 50 Hz multiple neutral earthed system.Housing Made from weather and UV resistant, fire retardant insulating material. A hole/slot each at the top and bottom.Manufactured in 2 parts i.e., top cover and base molding. Sealing provided to seal the top cover to the base Base moldingTerminal Block Connector Design with a hole Internal Diameter = 9mm, at least 2 pinching screws/stud of 8mm(M8) per hole, with incoming and outgoing hole. Inner side of hole is with threaded.Pinching screw and terminal shall made of tin plated brass. Pinching screw and terminal shall be electro- tin plated in accordance to BS 1872. Filled sufficient quantity of electrical conductive oxide inhibiting compound.
View Specifications

LV Arrester

Low voltage metal oxide surge arresters with a silicone housing NNO and MOSPO are designed for installation in low voltage power lines or junction boxes with voltages up to 1 kV.They serve as the initial level of protection against surges and other transients. The varistors of low voltage surge arresters NNO and MOSIPO are directly molded by silicone rubber, providing them with a high level of ingress protection rated at IP 67.
View Specifications

Insulated Piercing Connector (IPC) Holder

MODEL : IPCH-01

Insulating Piercing Connector Holder, IPCH-01 made from Aluminum Alloy high grade Tool was tested according to NFC 033-020:2013 and can with stand torque up to 40kN.
  • Weight : 450 g.
  • Minimum clamping jaw: 40 mm
  • Maximum clamping opening: 70 mm
View Specifications

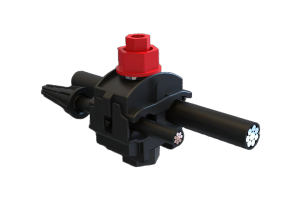

Insulated Piercing Connector (IPC)
