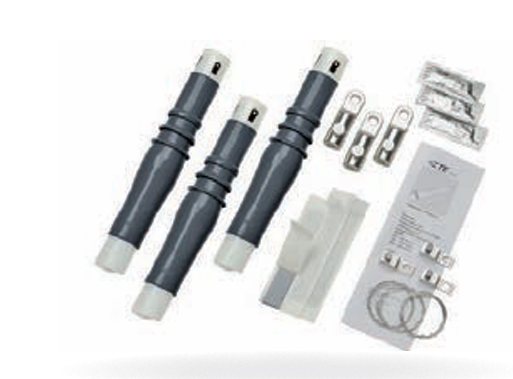

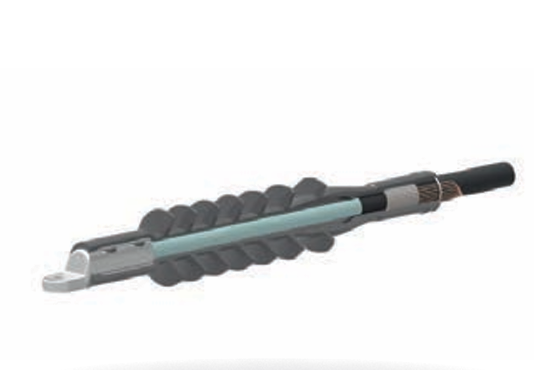

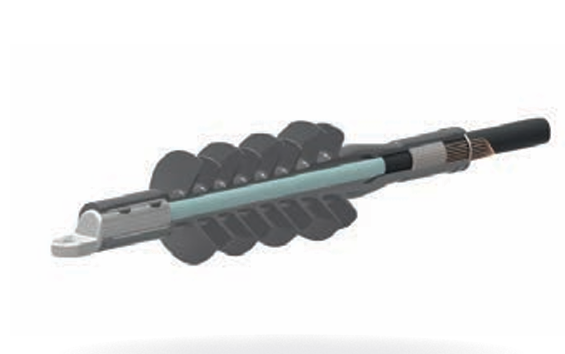

CSTI/CSTO Cold-shrink Termination with Integrated Stress Control for XLPE Cables up to 24 kV

FEATURES

Pre-expanded termination body with
integrated stress control;
The extra-long silicone stress cone
is integrated with the termination
and reduces positioning switchgear
connection systems;
Accommodates mechanical lug
and compression lug

TECHNICAL DATA

Full Product Specifications

APPLICATIONS

Suitable for indoor and outdoor use;
25 – 630 mm2 conductor size
