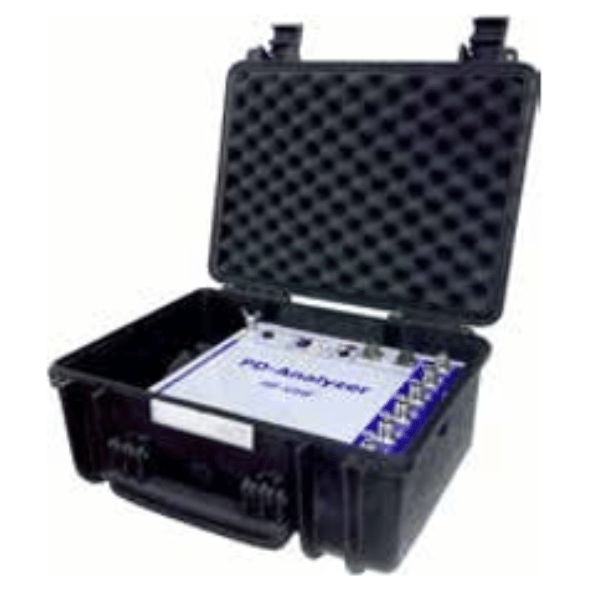

PD Analyser

Portable Diagnostic Systems for Various Applications

Product successfully added to the Quote List

This is an ‘All in One’ solution for detection, analysis & localisation of partial discharges in the insulation of high-voltage Transformers, Cables, GIS, Generators and Motors.The PD Analyser is an extremely useful device for condition estimation of high-voltage insulation. This multi-purpose device is designed for

Partial discharge measuring in high-voltage insulation at a high noise level
PD detection & identtification of various types of defects for effective insulation condition estimation

Key Features & Capabilities

Three / Six independent measuring channels in which signals are measured simultaneously. This function enables to see pulses from partial discharges are distributed and where they are located in high-voltage equipment
Built-in intelligent system ‘PD-Expert’ used for automatic diagnosis of insulation defects in high-voltage equipment
Built-in hardware and firmware features to solve the problem of noise and crosstalk in the process of partial discharge measurement
Identifies the type of the insulation defect and its severity
‘PD Expert’ Software separates stray pulses and partial discharges while comparing their frequency and time of arrival
‘PD Expert’ Software uses phase resolved partial discharge (PRPD) and time frequency analysis (PD-Cloud)
‘PD Expert’ Software has the database of the most popular defect images which can be upgraded with new diagnostic information
Automatic report generation on the condition of the insulation of the high-voltage equipment

TECHNICAL DATA

Full Product Specifications

Parameters	PD Analyser 3	PD-Analyser HF/UHF
Number of measuring channels	3	6 or 6
Sensor Options	HF, UHF	TEV, HF, UHF
HF discharge pulse frequency	0.5 – 20 MHz
VHF discharge pulse frequency	10 -100 MHz
UHF discharge pulse frequency	200 – 1500 MHz
HF discharge amplitude	20 – 100000 pC
UHF discharge amplitude	-70 to -25 dBm
Computer connection	USB, Wi-Fi	USB
Supply voltage	90 – 260V AC
Operating temperature range	-10 to 50ºC
Dimension	220 x 160 x 45 mm	520 x 435 x 230 mm
Weight	12 kg	25 kg
