PVM-1530

Photovoltaic meter

Index: WMGBPVM1530
Brand: Sonel

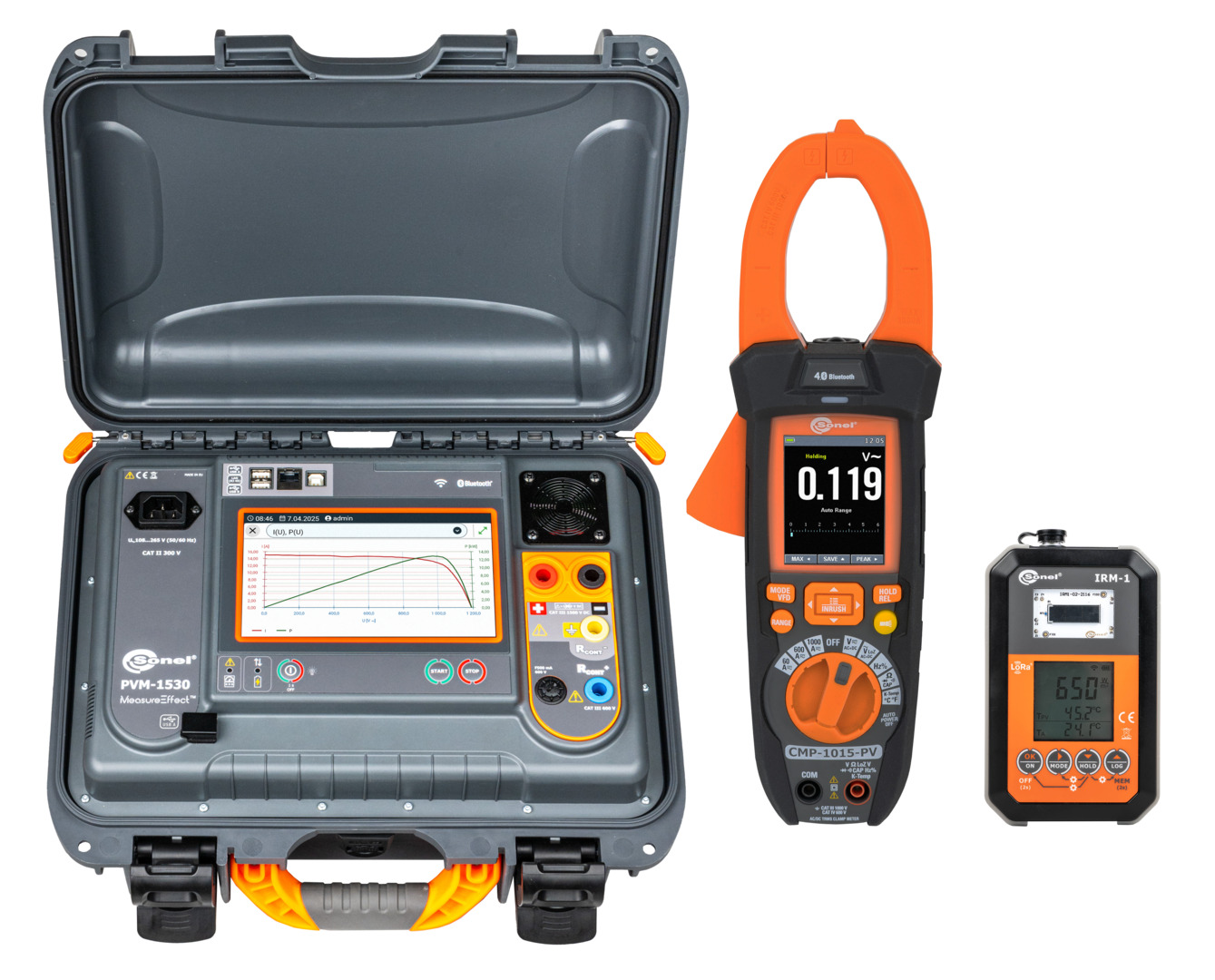

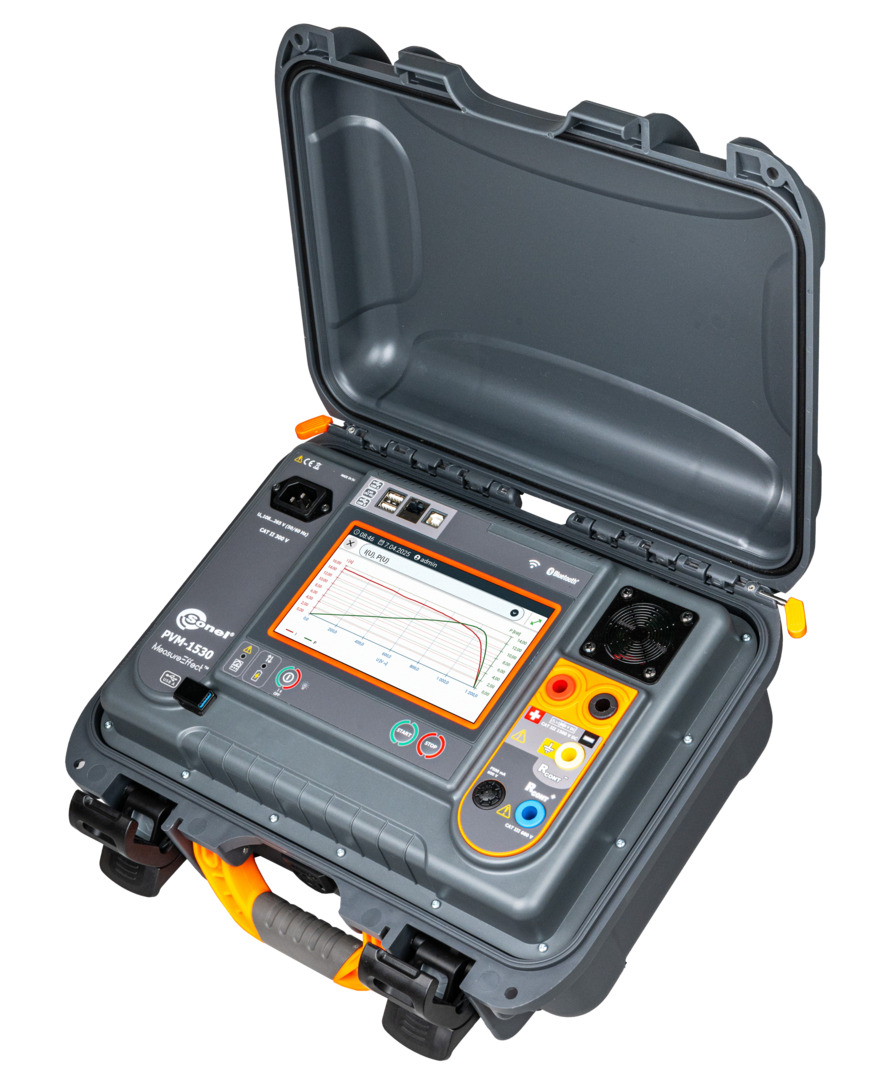

Professional meter for photovoltaic installations up to 1500 VThe PVM-1530 is a pioneering meter for photovoltaic installations up to 1500 V with such a substantial number of measurement functions. It can be used for category 1 measurements according to EN 62446-1. It allows the measurement of the I-U curve for category 2 according to EN 62446-1. Furthermore, it also converts measured parameters into STC conditions according to EN IEC 60891. Comprehensive, yet simple to use, it flawlessly performs its tasks in monitoring the safety and efficiency parameters of photovoltaic (PV) installations.

Key Features & Capabilities

Features
It can be used for category 1 measurements according to EN 62446-1.
Allows the measurement of the I-U curve for category 2 according to EN 62446-1 and EN 61829.
It allows the measurement of photovoltaic panels, including bifacial and high-efficiency panels.
Ability to define measurement procedures.
It converts measured parameters into STC conditions according to EN IEC 60891 by cooperation with the IRM-1 solar radiation and temperature meter.
reSYNC function – automatic completion of results with environmental parameters and their conversion to STC conditions after restoring connection with IRM-1.
The attachable radio interface ensures cooperation with the IRM-1 meter over long distances.
Built-in Bluetooth and Wi-Fi for communication with external devices.
Large structured memory of measurements.
Large touchscreen for good visibility in bright sunlight.
Measured parameters
Measurement of I-U and P-U characteristics. Conversion to STC conditions.
The open circuit voltage of the PV panel or a chain of panels, up to 1500 V DC.
RMS voltage of the AC network up to 1000 V with frequency measurement.
Short circuit current of a PV panel or chain of panels – up to 40 A DC.
Insulation resistance of PV panels – measuring voltage of 250, 500, 1000, 1500 V DC, simultaneous measurement of two values: R_ISO+ and R_ISO-.
Insulation resistance of AC circuits – measuring voltage 250, 500, 1000 V DC.
Resistance of protective conductors and equipotential bonding with ± 200 mA current.
Measurement of PV panels operating current and AC current – all with
CMP-1015-PV meter.
AC/DC power measurement.
Test of bypass diodes, automatic polarity detection.
Test of blocking diodes with 1000, 1500 V DC voltage.
Cat. 1 measurements and I-U characteristics

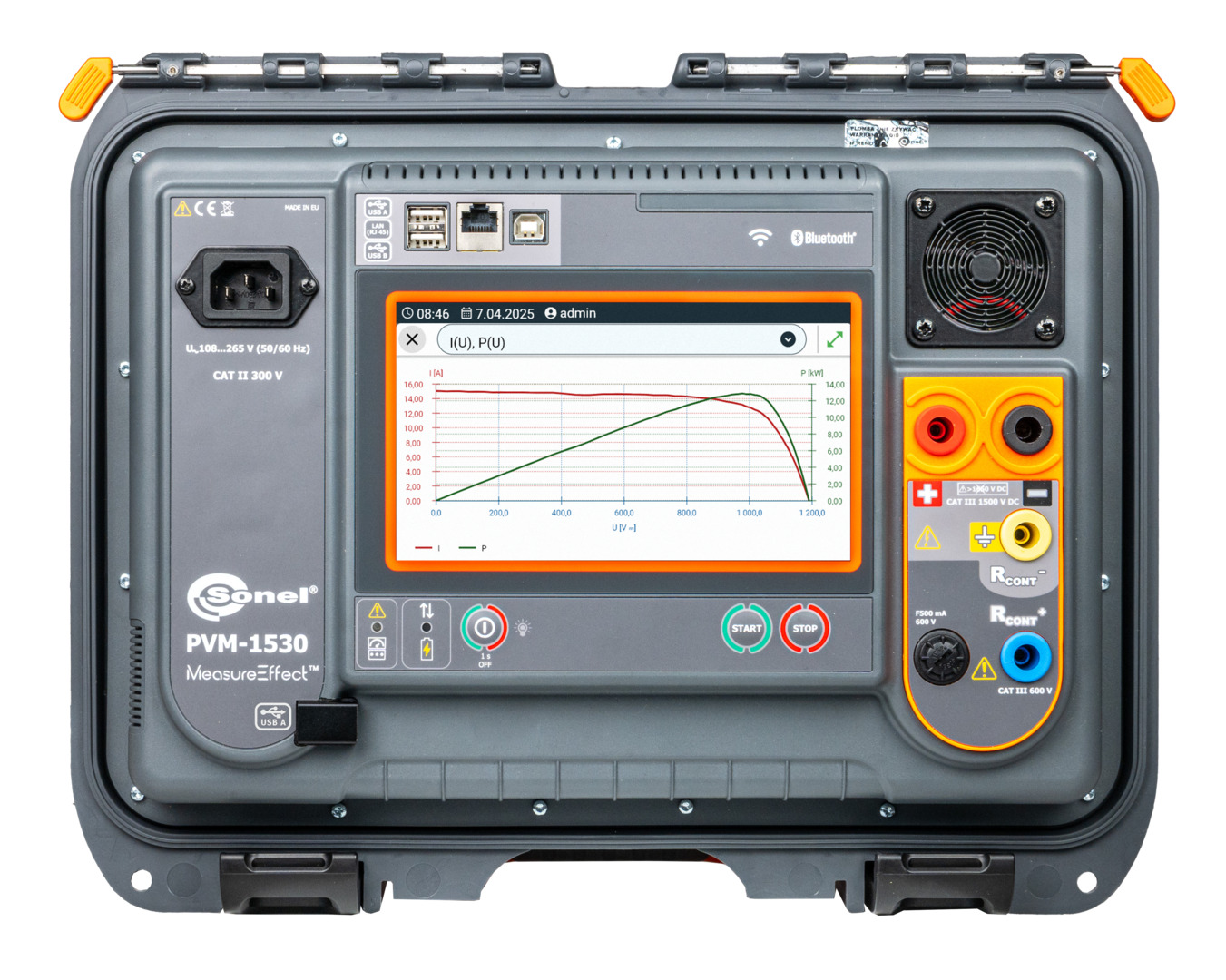

The PVM-1530 is a pioneering meter for photovoltaic installations up to 1500 V with such a substantial number of measurement functions. Their selection is done via a touch screen. The screen is large, colorful and with strong backlight so that operation in full sunlight is not a problem. Extensive structural memory significantly reduces the time for preparing post-measurement documentation.
Tightness and durability

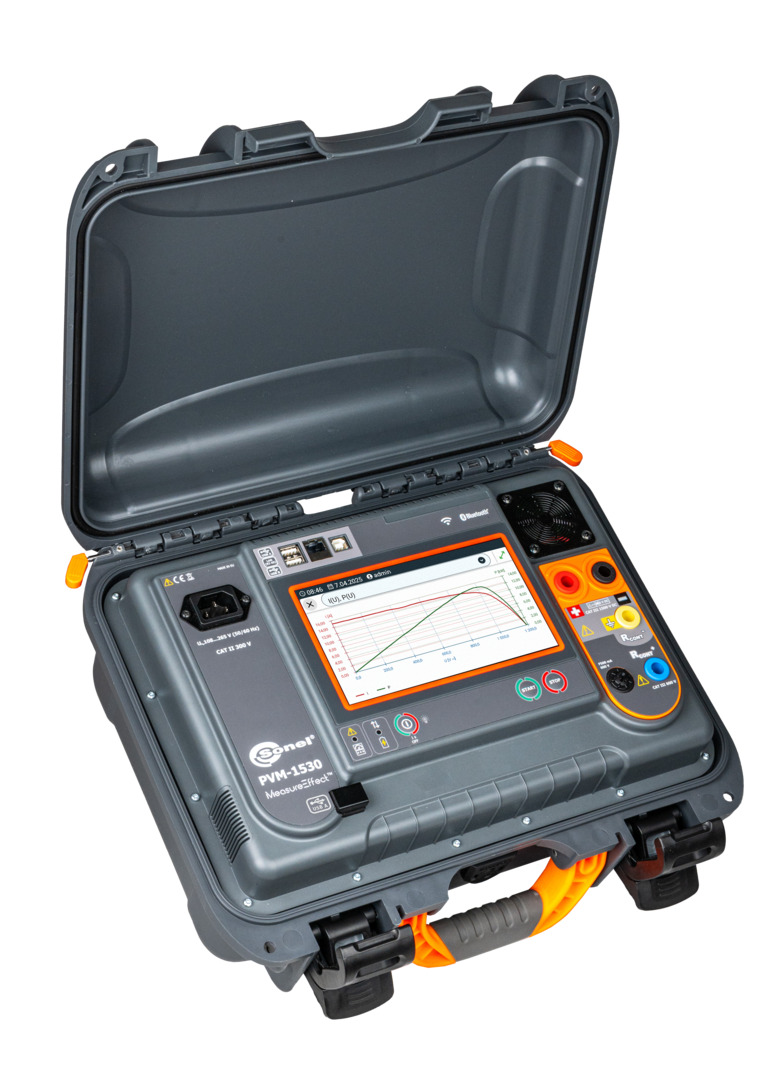

Light meters perform well in harsh environmental conditions. The PVM-1530’s housing is rugged and tight when closed to easily ensure that the meter is protected during measurement.
Communication and software
Measurement data from the PVM-1530 can be transferred to a computer via cable or wireless communication. Saving the downloaded data to popular formats and printing is ensured by Sonel Reader. In order to generate a report on electric shock protection use the optional software: Sonel Reports Plus.
Trouble? reSYNC!
It may happen that in the course of measurements the PVM-1530 moves away from the IRM-1 so far, that communication between them is lost. If the measurements are continued, then after the connection is restored, the results will be automatically supplemented with environmental parameters, which in the meantime were recorded by the IRM-1 in its temporary memory, and converted into STC conditions.

TECHNICAL DATA

Full Product Specifications

Parameter	Measurement range	Display range	Resolution	Accuracy
Voltage
AC voltage	0.0 V…1000.0 V	0.0 V…1000.0 V	0.1 V	±(2% m.v. + 6 digits)
DC voltage	0.0 V…1500.0 V	0.0 V…1500.0 V	0.1 V	±(0.5% m.v. + 2 digits)
Frequency	10.0 Hz…100.0 Hz	0 Hz…100.0 Hz	0.1 Hz	±(0.5% m.v. + 2 digits)
Short circuit current I_SC
Voltage 1500 V DC	0.00…30.00 A	0.00…30.00 A	0.01 A	±(1% m.v. + 2 digits)
Voltage 1000 V DC	0.00…40.00 A	0.00…40.00 A	0.01 A	±(1% m.v. + 2 digits)
Insulation resistance
Insulation resistance at AC side
• Measuring voltage 250 V	250 kΩ…200 MΩ acc. to EN IEC 61557-2	0.0 kΩ…200.0 MΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
• Measuring voltage 500 V	500 kΩ…500 MΩ acc. to EN IEC 61557-2	0.0 kΩ…500.0 GΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
• Measuring voltage 1000 V	1000 kΩ…1.000 GΩ acc. to EN IEC 61557-2	0.0 kΩ…1.000 GΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
Insulation resistance at DC side
• Measuring voltage 250 V / 500 V / 1000 V / 1500 V	250 kΩ…500 GΩ acc. to EN IEC 61557-2	0.0 kΩ…500.0 GΩ	from 0.1 kΩ	±(8% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current	0.10 Ω…1999 Ω acc. to EN IEC 61557-4	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(2% m.v. + 3 digits)
Operating current	as for CMP-1015-PV	as for CMP-1015-PV	as for CMP-1015-PV	as for CMP-1015-PV
Power measurement	0.0 kW…999.0 kW	0.0 kW…999.0 kW	0.1 kW	±(6% m.v. + 5 digits)

Related Products

This is an ‘All in One’ solution for detection, analysis & localisation of partial discharges in the insulation of high-voltage Transformers, Cables, GIS, Generators and Motors.The PD Analyser is an extremely useful device for condition estimation of high-voltage insulation. This multi-purpose device is designed for

Partial discharge measuring in high-voltage insulation at a high noise level
PD detection & identtification of various types of defects for effective insulation condition estimation

Battery banks have become an inseparable part of uninterrupted or back-up power supply arrangements in various industries like Power, Telecom, IT etc. In substations the critical protection, control & communication systems run on battery power. Hence the reliability of these battery banks is crucial to ensure smooth operation of equipment which they are serving. The capacity of battery may get reduced significantly before the expected life span of battery due to various reasons. The only way to assess the continual health of battery banks is periodical maintenance inspection & testing. Conducting a discharge test on batteries is most effective way to check the battery capacity.SCOPE introduces BLUe Series Battery Loading Units; these are moveble instruments for controlled & monitored discharge of batteries. They are designed for integrated site discharge test, design & QC test and also for monitoring discharge process of battery bank with connected load. Each single autonomous unit having built-in display, keypad and wireless communication with computer makes it very easy to use. It comes in different configurations ranging from 12V to 380V discharge voltages and 50A to 300A discharge currents.Various options are available to control & monitor the discharge process. With the help of optional Cell Monitoring Unit – CellMon, voltage of each individual cell can be monitored & data sent to main BLUe unit and then from main unit to computer via wireless communication. Each BLUe unit is supplied with computer downloading & analysis software for real time monitoring of discharge process.

CFL PP series is suitable for pin-pointing of fault location as well as route tracing of any type of cable. For pinpointing it is used along with CFL SG Series Surge Generators and for route tracing it is used along-with CFL AG Series Audio Frequency Generators.

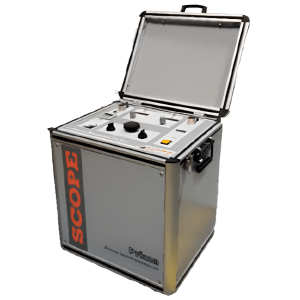

Prima Series is designed for Primary Current Injection Testing of Current Transformers, Protection Relays & Circuit Breakers during their Factory Test, Commissioning and Routine Testing. It is also used to test the Turns Ratio of Current Transformers and for other applications that require variable high currents. The Kit is designed for most optimal use of man and machine and is suitable to work in live switchyard conditions. Prima consists of a Control Unit and a low weight Loading Transformer, enabling the user to take the Loading Transformer nearest to the CT terminal. Thus, the weight of both the output lead and overall kit reduces considerably. The innovative design of Prima gives the ultimate flexibility to the user to use the full capacity of the Loading Transformer by adjusting the output voltage and current as per requirement.
