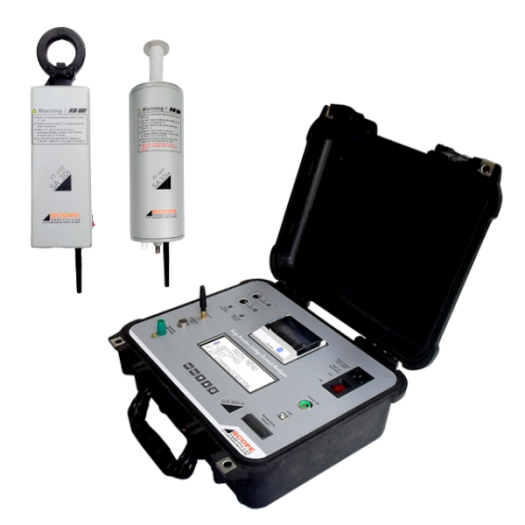

SA Series SA 30i

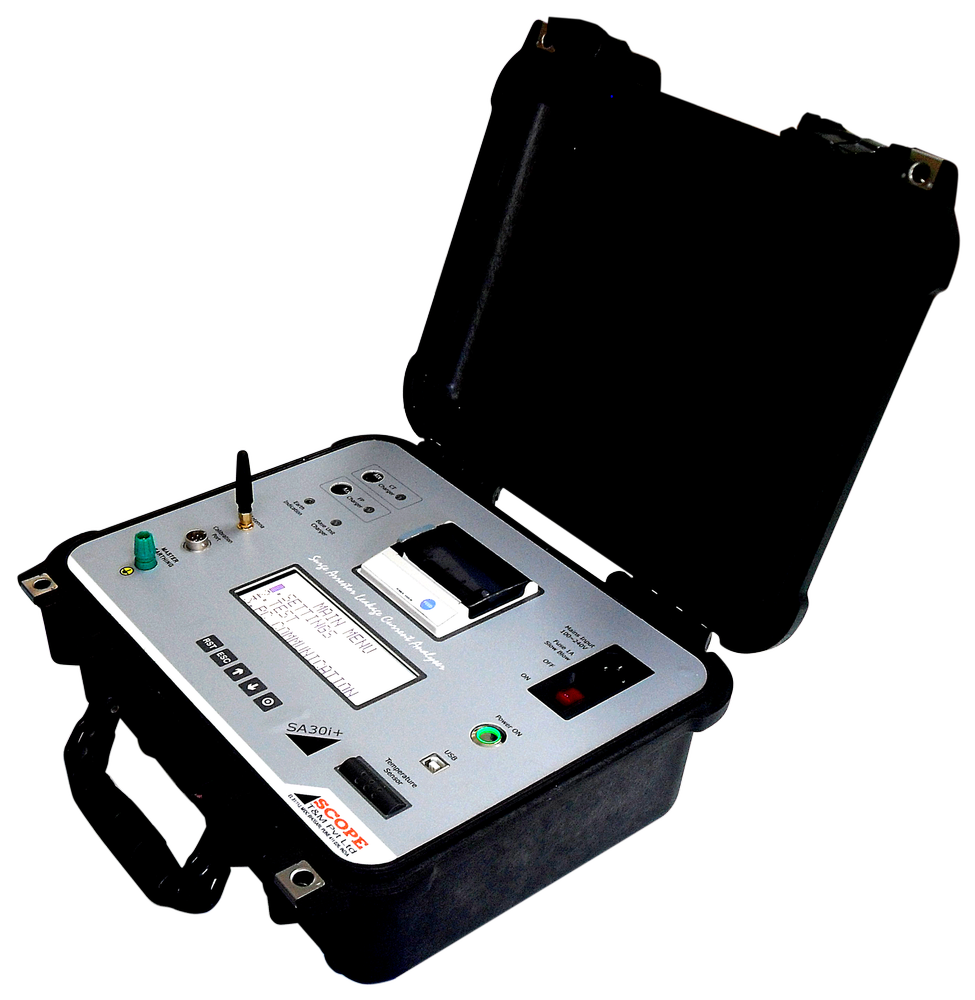

SA Series SA 30i - Image 2

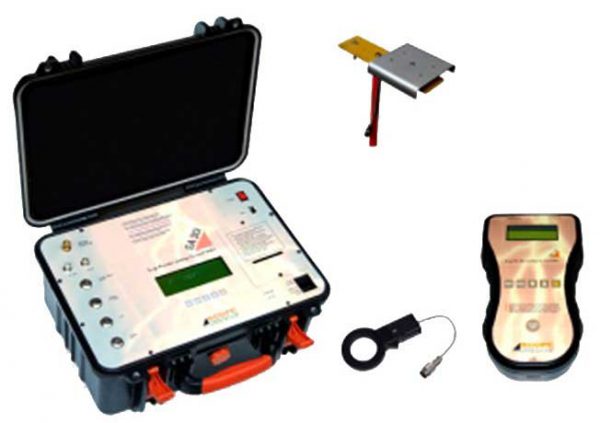

SA Series SA 30i - Image 3

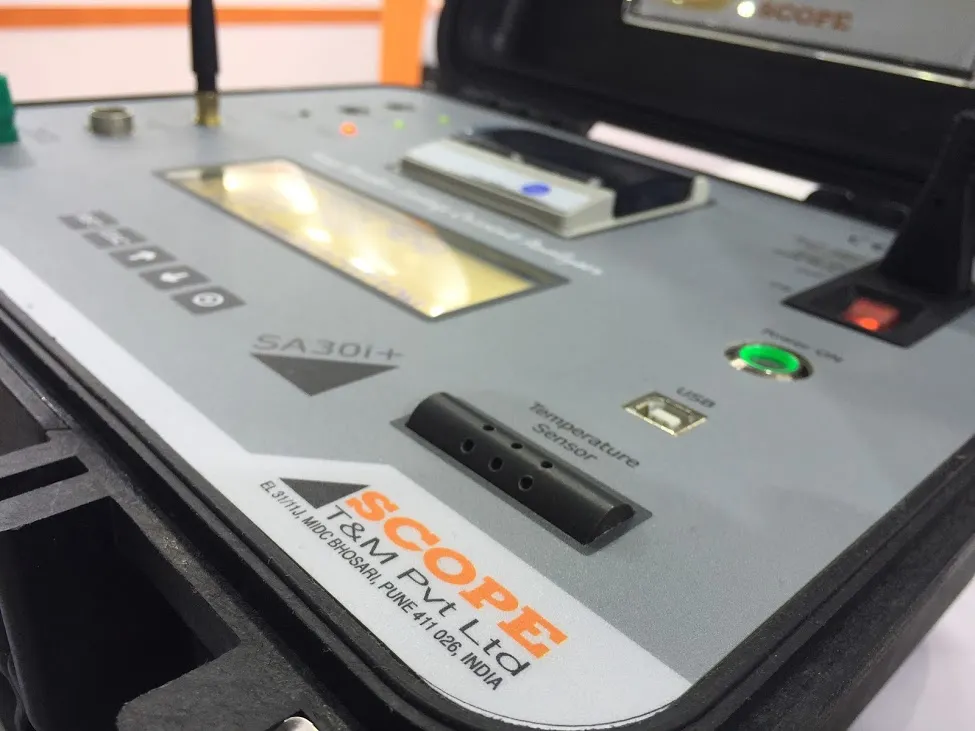

SA Series SA 30i - Image 4

SA Series SA 30i

The SCOPE SA 30I is a wireless Leakage Current Analyzer designed for the online assessment of Metal Oxide Surge Arresters. It measures and displays Total Leakage Current and Third Harmonic Resistive Leakage Current, providing system harmonic compensation as per IEC 60099-5-B2

Features

  • Simple, light weight, portable, feature-rich, affordable.
  • Measures Third Harmonic Resistive Leakage Current (THRC) with system harmonic
    compensation*, and Total Leakage Current.
  • 0i+ has Wireless CT and Wireless Field Probe to ensure isolated and completely
    ungrounded measurement for human and instrument safety.
  • In-built temperature measurement facility to calculate temperature compensated
    leakage current values.
  • Results are displays on LCD, Printed on in-built thermal printer*, and can be stored in the
    in-built memory of instrument.
  • In-built standard calibration source for self-calibration check facility.
  • USB communication port to transfer data to computer SA identity creation, Data Management, Analysis and Trend Analysis through supplied SAData software.
  • Facility for testing of GIS LAs available optionally through Field PT input (IEC 60099-5 A1)
  • The instrument is supplied along with low noise Clamp-on CT , Field Probe assembly for
    system harmonic compensation*, Test Leads suitable for EHV class LAs*, Thermal printer
    & paper roll*, SAData software installation CD

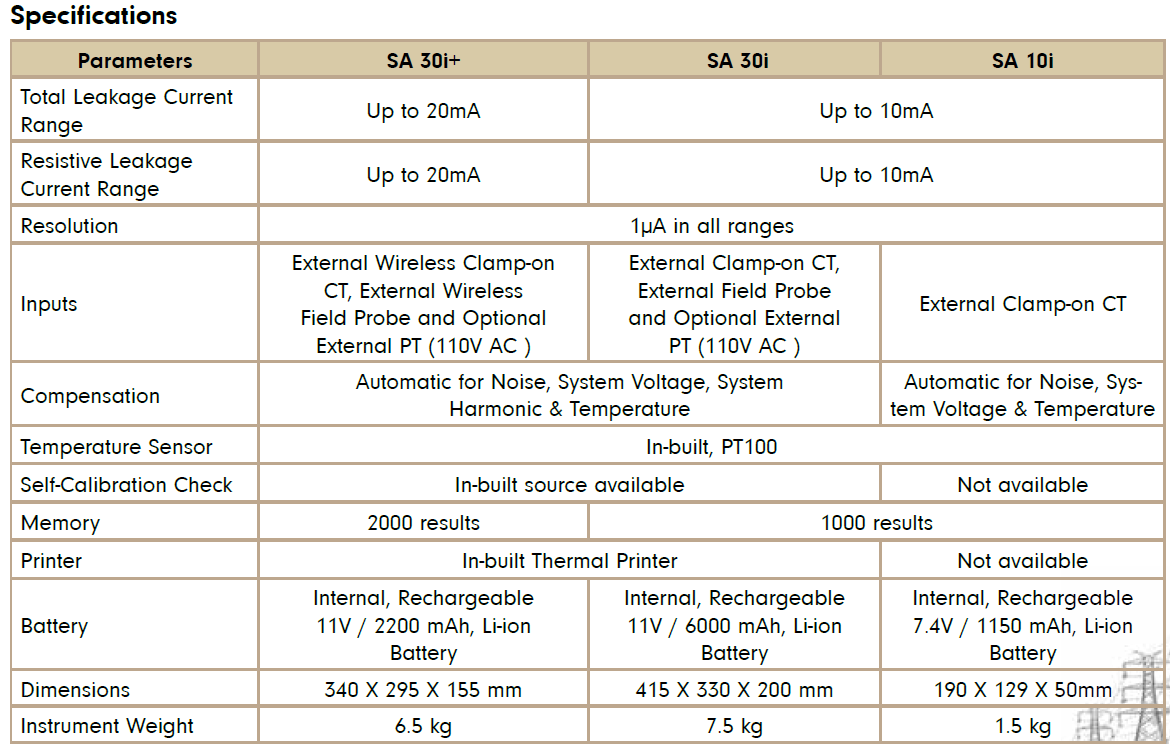

TECHNICAL DATA

Full Product Specifications
