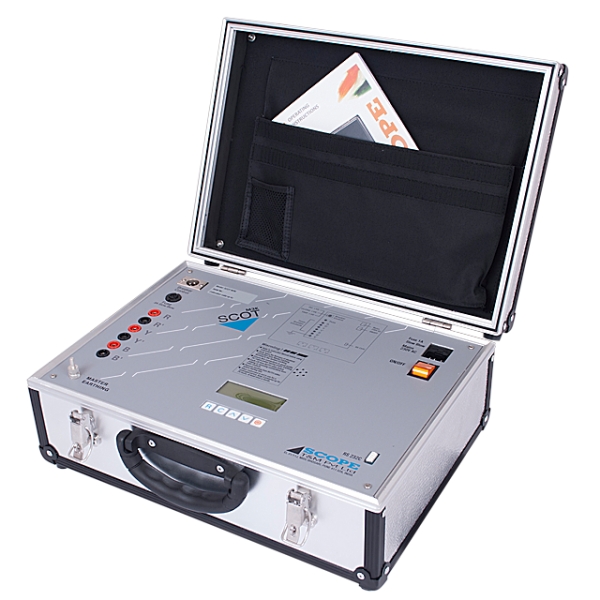

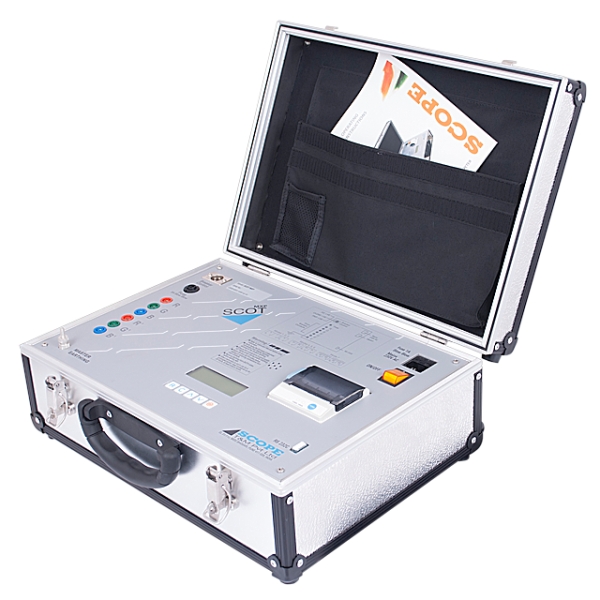

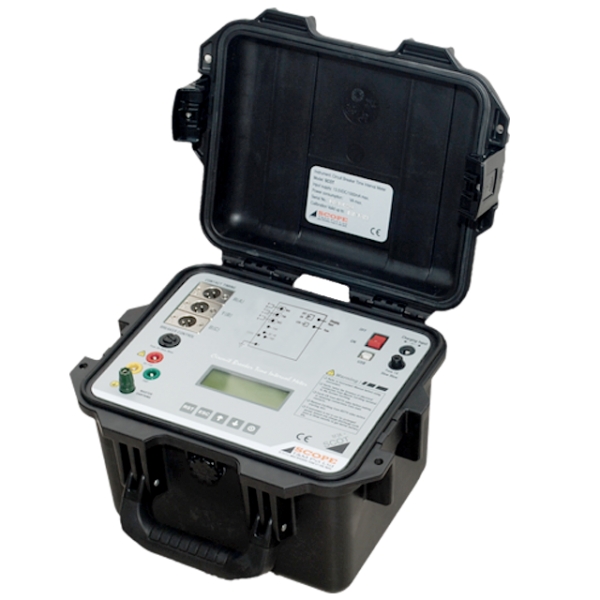

SCOT+ Series (SCOT MXP+ & SCOT M3K+)

Circuit Breaker Time Interval Meter

Product successfully added to the Quote List

SCOPE offers its modern generation of iconic SCOT Series Circuit Breaker Time Interval Meters in all new super-light avatars, based on cutting edge micro controllers & powered by embedded technology.User can choose from two models, SCOT M3K+ and SCOT MXP+ depending on type of circuit breaker and testing to be done.

Key Features & Capabilities

A radically new design makes SCOT the lightest available CB Time Interval Meter
High sampling frequency of up to 10kC offers high timing resolution of 1mS
In-built rechargeable Li-ion battery operated with battery monitor and cut off circuit to protect the battery against deep discharge
In-built real time clock, memory and printer* with Test Date / Time stamping on each record enables time references for future use
Computer Downloading & Analysis including ‘Trend Analysis’ through “CData SCOT+” Software
Instrument debug options like contact status check, command check, memory check, printer check*, computer downloading check
Simple operation – Tests can be conducted even by the technicians
Supplied with rugged test lead set, suitable for testing EHV CBs
Enclosed in ultra rugged IP67 class molded case
The instrument is supplied with “CData SCOT+” software CD, Calibration Certificate, and Test leads suitable for testing of EHV class circuit breakers
Type Tested as per IEC 60068-2, IEC 61326-1 & IEC 61010-1, CE marked

TECHNICAL DATA

Full Product Specifications

Parameters	SCOT M3K+	SCOT MXP+
Contact Timing Channels	3 (3 Main contacts, end to end, 3 poles Simultaneously)	12 (Up to 2 Main + 2 PIR contacts per pole, 3 poles simultaneously, i.e. 6 Main + 6 PIR contacts simultaneously)
Sampling Speed	10kC, 5kC, 2kC, 1kC & 100C, Selectable
Timing Range	1S, 2S, 5S, 10S & 100S respectively for respective Sampling Speeds
Resolution	0.1mS, 0.2mS, 0.5mS, 1mS & 10mS respectively for respective Timing Range
Accuracy	Value ± 0.05% ± 1 digit
Breaker Control	Two solid state contacts rated at 35A, 300V AC/DC for breaker operation
Trigger Options	Close, Open, Close-Open
Display	4 Line X 20 character backlit LCD
Printer	In-built, 58 mm thermal printer (Available only in SCOPT MXP+)
Keypad	5 keys
Memory	In-built, 100 DUT IDs, 100 records each
Inbuilt Battery	Rechargable Li-Ion, 11.1V, 4Ah
Battery Charger	Input Supply: 90 to 275 V AC, 50/60 Hz ± 10%; Output Voltage: 13.5V DC, 1000mA
Communication Port	USB
Software	Windows based “CData SCOT+”
Environment	0°C to 50°C, Upto 95% RH (Non condensing)
Dimensions	300 x 250 x 200 mm
Instrument Weight	5 kg

Note: * -Feature available only in SCOT MXP+
