Screened Separable Connector Plug In

Inner Cone Systems for Switchgears and Transformers maintenance

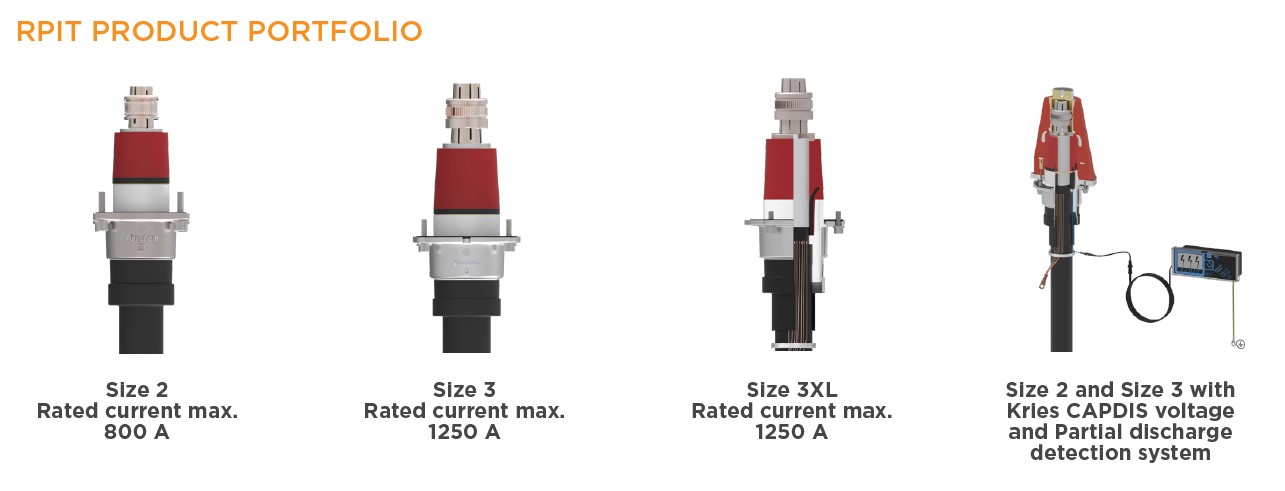

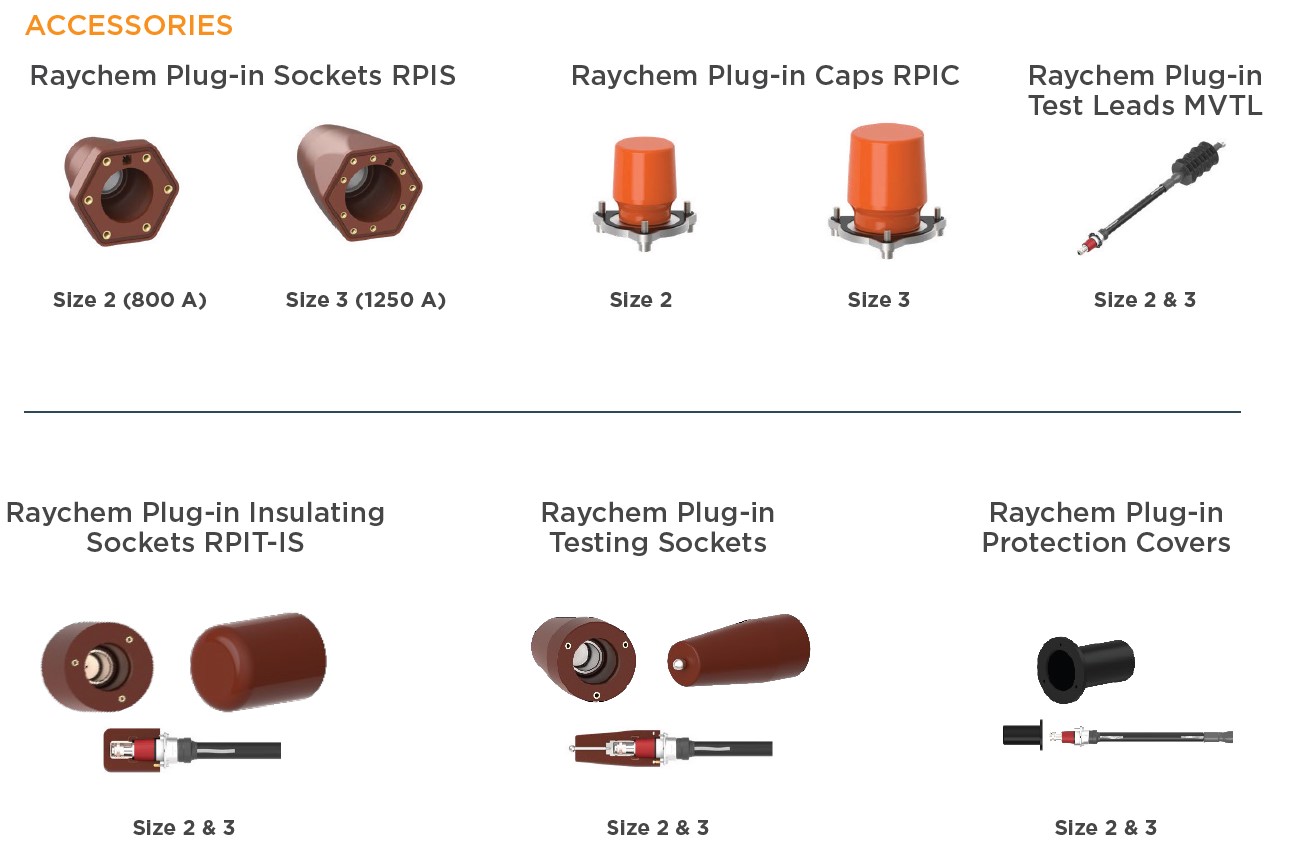

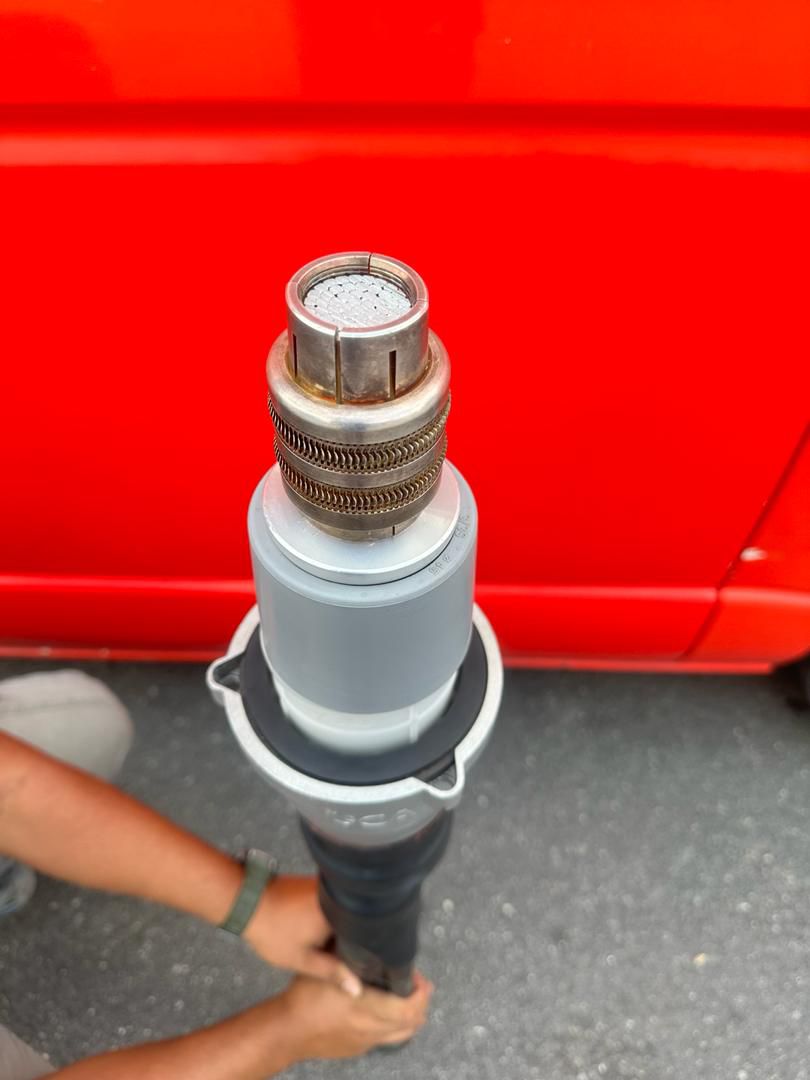

Raychem Plug-in Terminations RPIT separable connectors are compliant with CENELEC HD 629.1.S2:2006-A1:2008 (up to 42 kV) and IEC 60840 (52 kV). The terminations incorporate a high-quality contact system, ensuring a reliable current transmission from the cable conductors to the busbars. The electrical interfaces between the silicone stress relief cone to the cable and bushing are kept permanently sealed using a pressure component. This element is housed in the protection cover, which is sealed with heat shrink tubing.The installation and plug-in of the inner cone terminations is simple, using a silicone component which is compatible with industry-wide standards. TE also offers a full line of other RPIT accessories such as bushings, insulating caps and up-to-date testing tools to meet the needs of our customers.

TECHNICAL DATA

Full Product Specifications

BRAND: TE (APAC)

APPLICATIONS
• Training your installers on new cables and products
• Solar Energy Solutions
• Wind Energy Solutions
• Battery Energy Storage
• Data Centres
• Rail & Metro Power Solutions
• Oil and Gas Solutions
• Underground Power Networks

RELEVANT STANDARDS
• Designed in accordance to CENELEC HD 629.1.S2:2006 -A1:2008 (up to 42 kV) and IEC 60840 (52 kV)
• Compatible with inner cone bushings as per EN 50180/EN 50181
• Compliant to cable conductors in accordance to IEC 60228

Related Products

TE Connectivity’s (TE) Raychem Screened separable T-connectors RSTI-58 are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings type “C” (EN50180/EN50181) specified for 630/1250A up to 24 kV.Made of a highly modified silicone rubber and protected by a thin-walled, grounded outer conductive screen, TE’s Raychem RSTI-58 connectors are equally suited for indoor and outdoor installation. Supporting a wide application range, the design incorporates one body and stress cone adapters to cover any cross-sections from 25 mm2 to 300 mm2. The overall cut-back dimensions are designed to take up minimum space in the terminal box.
