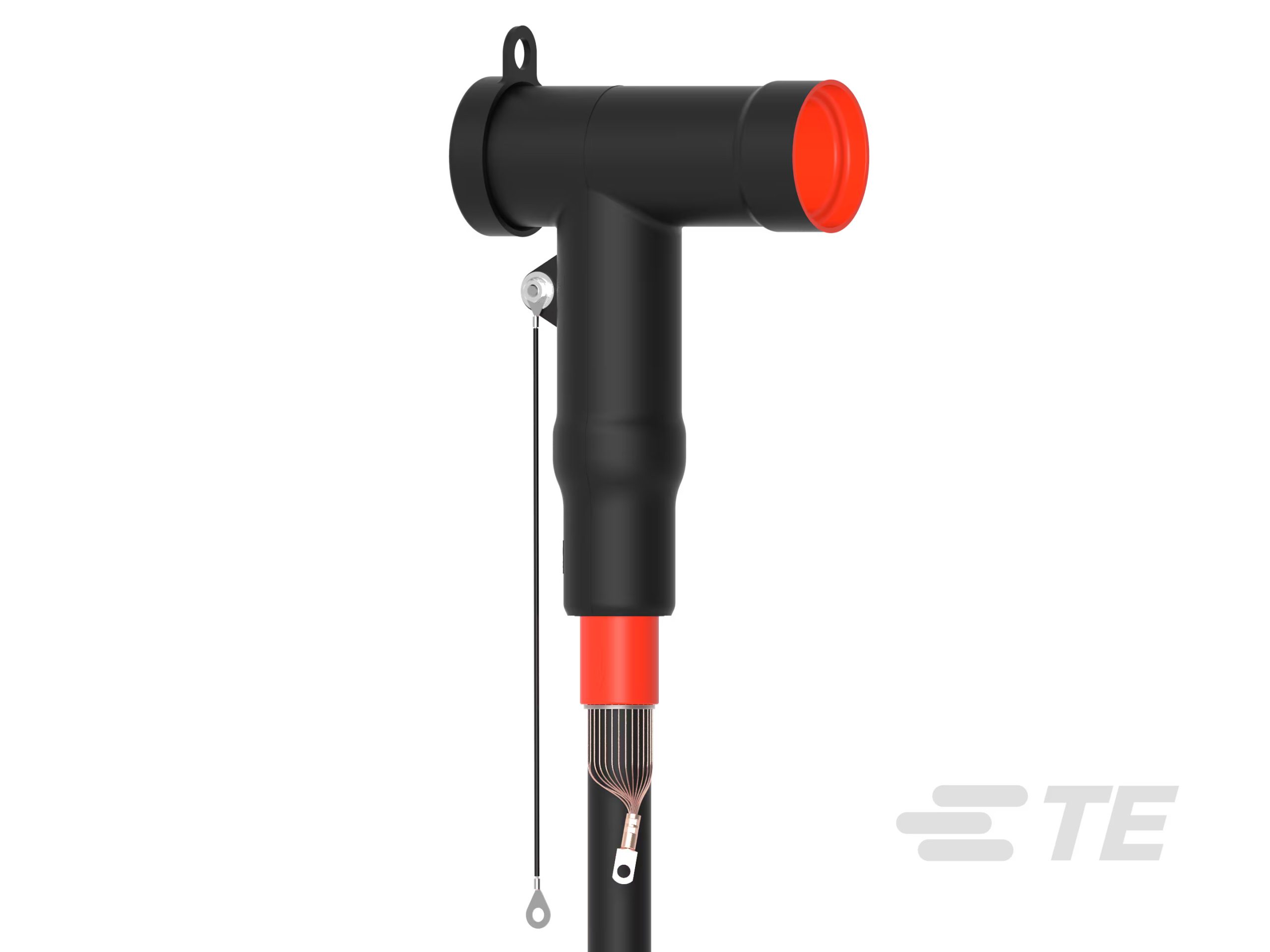

Screened Separable Connector Plug On

Connectors for connecting underground cables to RMU’s, switchgear and transformers

TE Connectivity’s (TE) Raychem Screened separable T-connectors RSTI-58 are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings type “C” (EN50180/EN50181) specified for 630/1250A up to 24 kV.Made of a highly modified silicone rubber and protected by a thin-walled, grounded outer conductive screen, TE’s Raychem RSTI-58 connectors are equally suited for indoor and outdoor installation. Supporting a wide application range, the design incorporates one body and stress cone adapters to cover any cross-sections from 25 mm2 to 300 mm2. The overall cut-back dimensions are designed to take up minimum space in the terminal box.

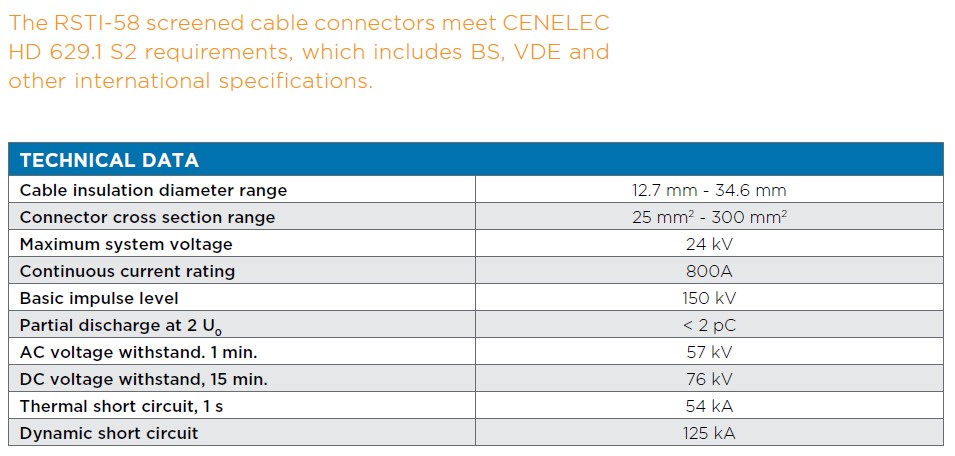

TECHNICAL DATA

Full Product Specifications

BRAND: TE (APAC)

KEY FEATURES

  • Screened connector does not need to be removed for over sheath testing
  • Wide application range covers cable cross sections from 25 mm2 to 300 mm2
  • Easy access rear plug with capacitive test point
  • Insulation made of highly modified silicone rubber
  • Compact design supports use of double “T” connections inside standard terminal boxes
  • Unlimited shelf-life
