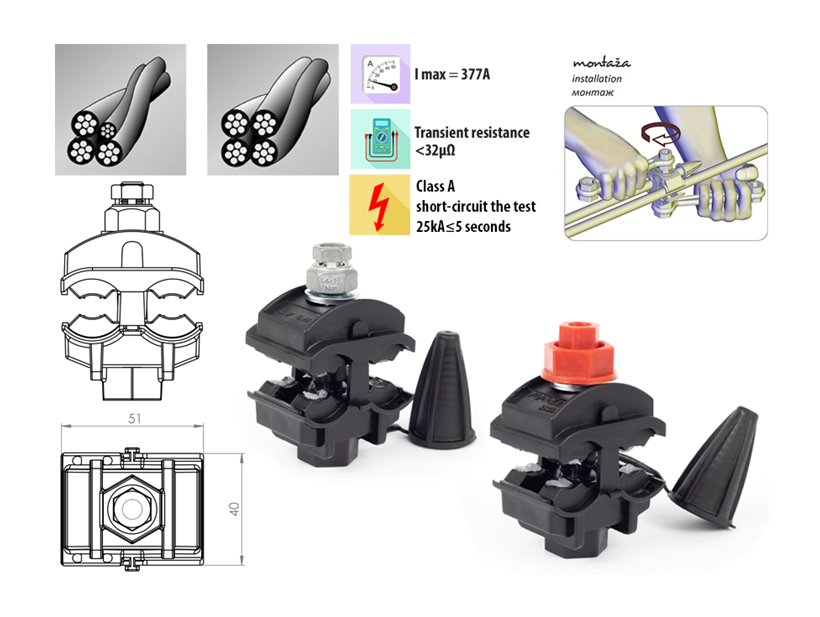

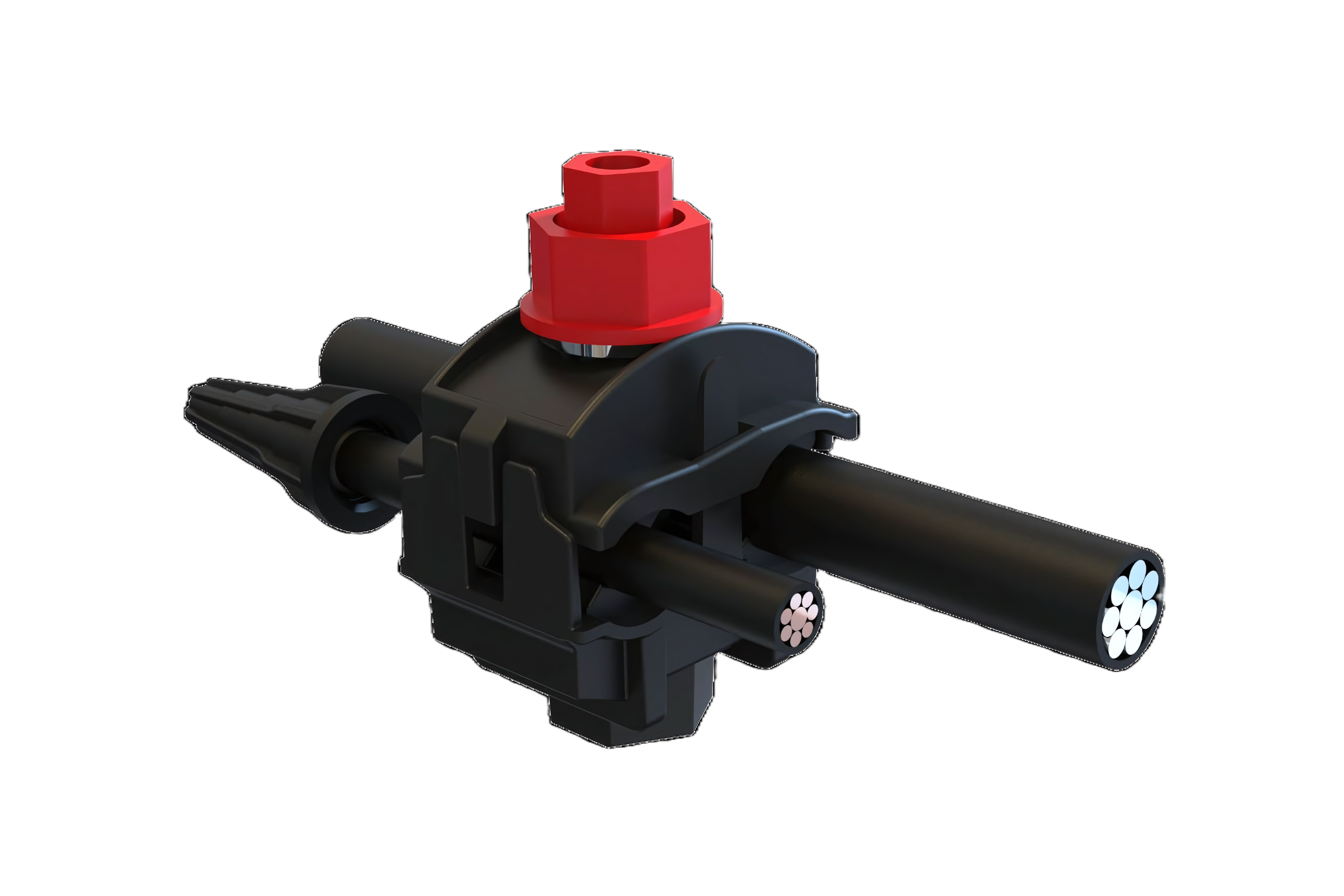

Insulated Piercing Connector (IPC)

For maintenance work on LV ABC conductors penetration

IPC is used for simultaneous penetration of insulation on LV ABC conductors and for connecting of conductors for street lighting. Connector is manufactured in such way that it enables connection of LV ABC and branch conductor regardless of whether it is an aluminum or copper conductor. The body of the connector is made of Heat and UV resistant plastic and the elastomer insert eliminates the appearance of electrolytic corrosion since it prevents the appearance of moisture at contact points. The contacts are protected with electric contact grease. Mounting under voltage is possible but with mandatory use of adequate protection equipment. Ring-spanner or tubular spanner.

TECHNICAL DATA

Full Product Specifications

BrandMarel
StandardEN 50483-4 / NFC 33 020
