Smart Tower Solution

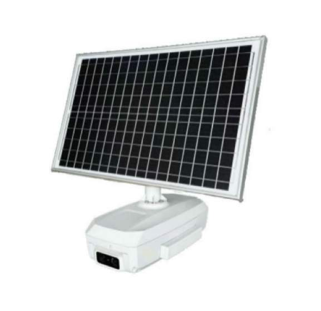

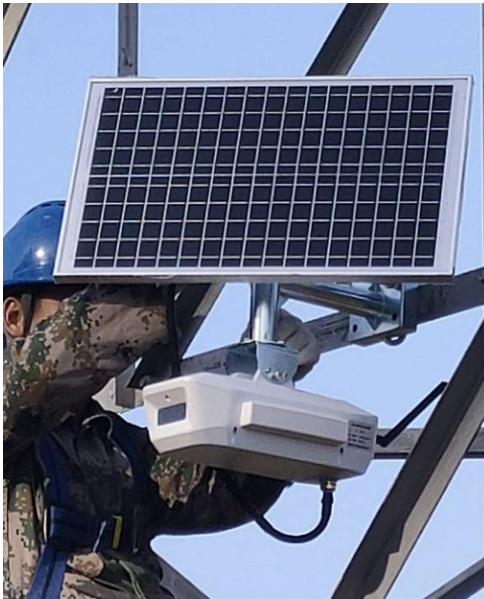

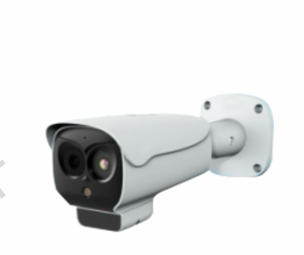

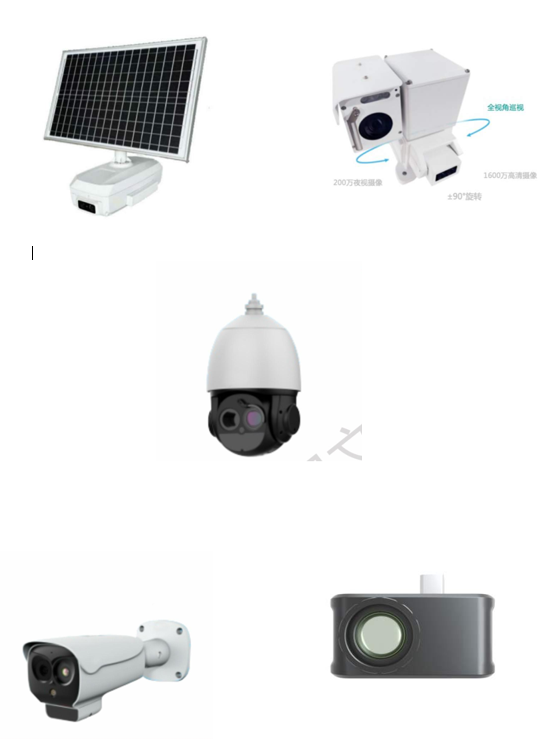

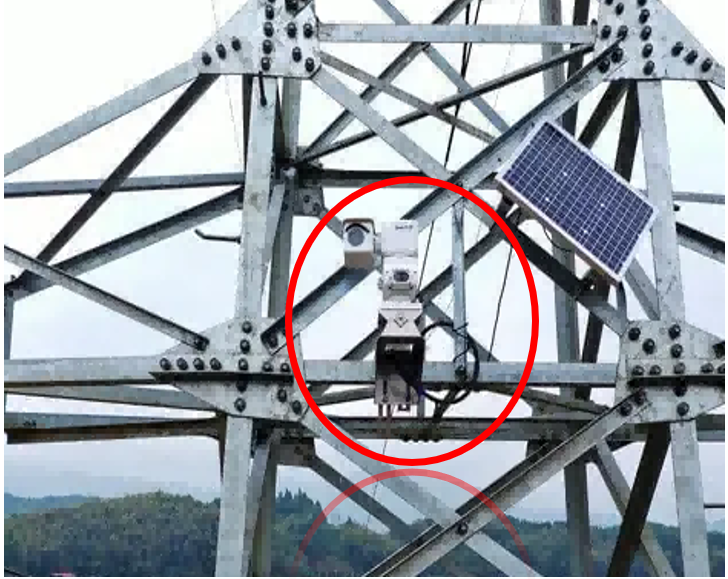

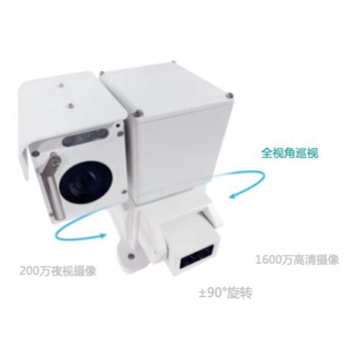

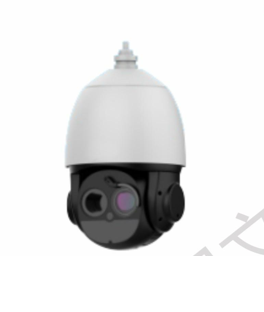

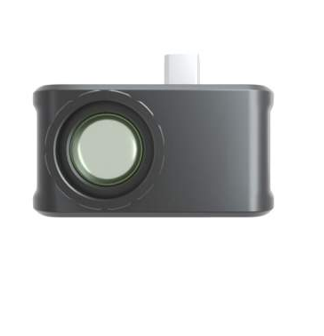

Introducing Kynetech Smart Tower Solutions, integrating advanced sensor technology, CCTV cameras, and PTZ cameras for efficient site monitoring and enhanced security.

Technical Approach

  • Integrating Micro-meteorological data with Kyne’sDynamic Line Rating (DLR)technology to enable real-time capacity assessment and predictive analytics for transmission line operations.
  • The system continuously monitors weather conditions including ambient temperature, wind speed, and solar radiation to dynamically adjust line ratings based on actual cooling conditions.Operational Outcome
  • Predicting“Hot Spots”and fire risks caused by vegetation proximity during peak load periods, enabling early intervention before critical thresholds are reached.

Business Impact

  • Proactive risk managementreduces unplanned outages and fire incidents, protecting infrastructure assets while ensuring regulatory compliance and community safety.

Risk Mitigation Strategy

  • Combined approach delivers comprehensive situational awareness for utility operators, transforming reactive maintenance into predictive asset management.

TECHNICAL DATA

Full Product Specifications

  • Intrusion detection: Distance between the crane arm of the construction vehicle and the power line
  • Image evidence: Distance between the crane arm of the construction vehicle and the iron tower
  • More accurate with 3D point cloud data (point cloud data not required)
  • Evidence collection photos
  • Short video (15S)
  • Audible and visual alarm (optional)
