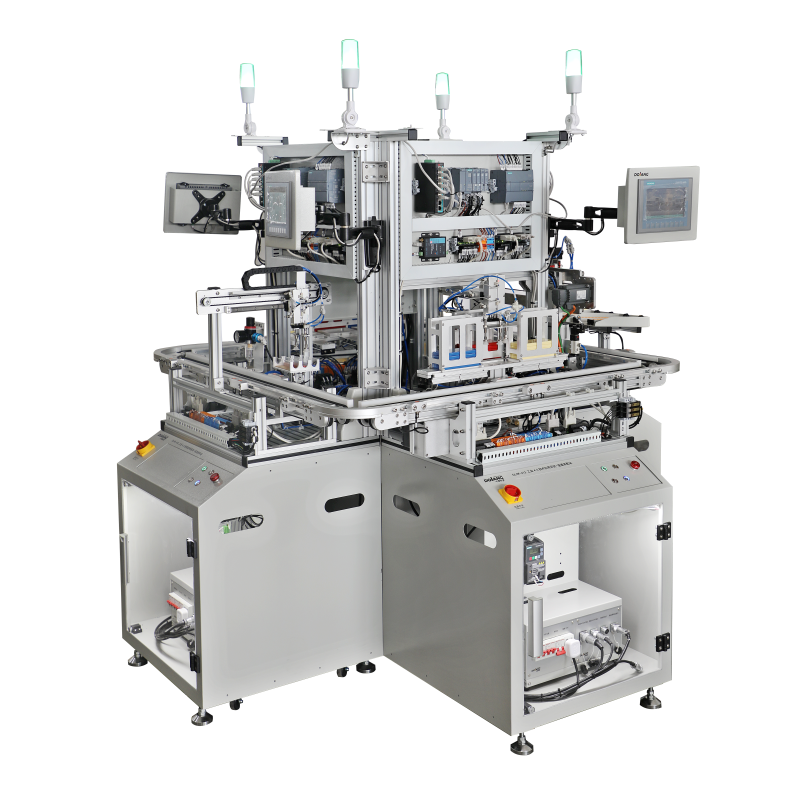

IR 4.0 Application Training System

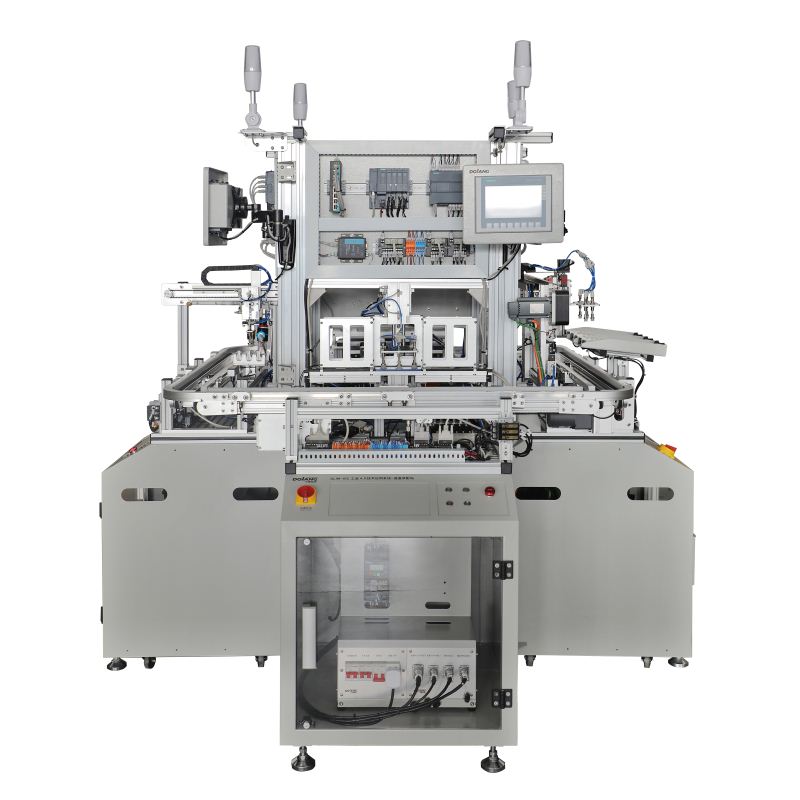

IR 4.0 Application Training System - Image 2

IR 4.0 Application Training System

Industrial 4.0 Technology Application Training System for Education Sector

DLIM-412 Industrial 4.0 Technology Application Training System is one engineer teaching system following the latest industrial 4.0 technology, it may be used for TVET vocational school to realize training projects like MOUDLEBUS communication between PLC and RFID; Profinet communication between PLC and PLC; Communication between MES and PLC; Application of bus communication technology; Application of motor drive technology; Mechatronics collaborative simulation: mechanical interference, mechanism kinematics etc.

TECHNICAL DATA

Full Product Specifications

Technical parameters.

  1. Working power supply: AC220V ± 10%, 50Hz,
  2. Rated power: 2KW
  3. Floor area size: overall layout size: about 2100 * 2100 * 1780mm (L) × W × H )
  4. Working environment: temperature 5 ℃ – + 40 ℃, relative humidity < 85% (25 ℃)
  5. Safety protection: it has multiple protections of short circuit, overload, audible and visual alarm light and emergency stop
  6. PLC: Siemens series



Training projects

  1. MOUDLEBUS communication between PLC and RFID;
  2. Profinet communication between PLC and PLC;
  3. Communication between MES and PLC;
  4. Application of HMI and stepping;
  5. Application of bus communication technology;
  6. Application of industrial automation network;
  7. Application of PLC technology;
  8. Application of motor drive technology;
  9. Application of motion control system;
  10. Digital 3D model construction and layout;
  11. PLC virtual debugging;
  12. 3D digital production line layout;
  13. Mechatronics collaborative simulation: mechanical interference, mechanism kinematics verification, mechanism dynamics verification;
  14. Application of MES system.
  15. SQL database application
  16. Heidi SQL data application
  17. Wireshark software technology application
  18. RFID application technology
  19. Network security technology: network planning, network wiring, firewall, gateway settings, etc.
  20. Logistics Technology
  21. Internet of Things Technology
  22. APP development and application technology
  23. Web Development and Application
  24. C# or Java, Javascript software application
