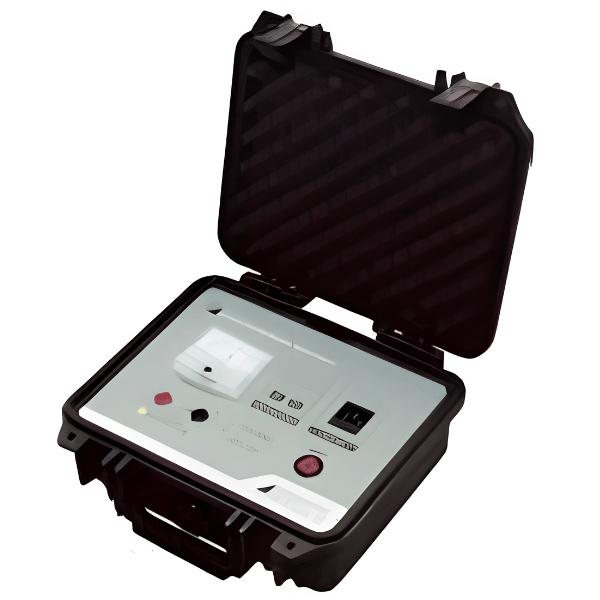

Cable Fault Audio Generator : CFL AG2

Product successfully added to the Quote List

Audio Frequency Generator has been designed to be used for cable route tracing, pin-pointing of low resistance welded faults, joint location and cable identification.

Key Features & Capabilities

Automatic impedance matching
High audio power output
Quartz stabilized frequency
Clean and distortion free signal output
Output in seven ranges, selectable manually or automatically
User friendly operation with minimum controls and Analog Ammeter display
Overload protection
Over current protection and indication

TECHNICAL DATA

Full Product Specifications

Max. Output Power : 20W
Max. Output Current : 2.8A ± 20%
Frequency : 1kHz Sine Wave
Output Voltage : In 7 steps 4-7V / 15-25V / 30-40V / 60-70V / 90-100V / 150-170V / 200-230V
Operating Modes : Continuous and Intermittent
Input Supply : 230V AC ±10%, 50Hz ±10%
Protection : Over Current
Environment : 0 to 50°C, 95% RH (Non-condensing)
Dimension & weight : 275 x 255 x 130 mm, 5kg
