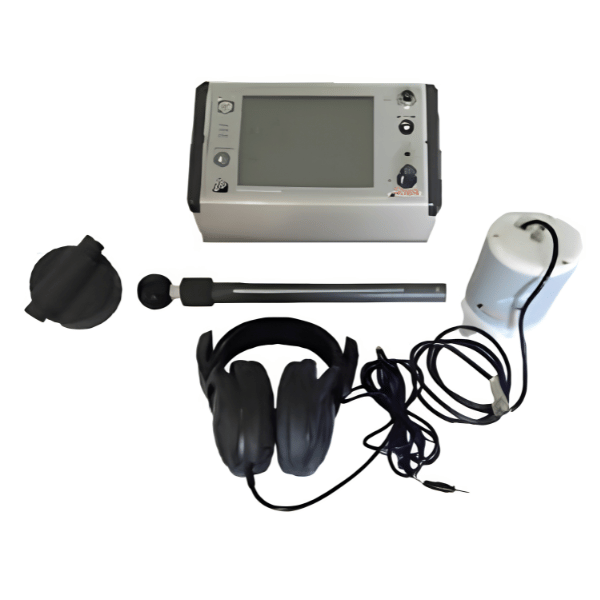

Cable Fault Route Tracer cum Pinpointer: CFL PP Series

CFL PP series is suitable for pin-pointing of fault location as well as route tracing of any type of cable. For pinpointing it is used along with CFL SG Series Surge Generators and for route tracing it is used along-with CFL AG Series Audio Frequency Generators.
  • Can be used for both pinpointing as well as route tracing
  • Both magnetic & acoustic inputs making pinpointing very convenient (Co-incidence Method)
  • Digital filters to eliminate external noise
  • Highly sensitive magnetic signal pick up
  • Mute function for headphones to disable noise while moving
  • Live loaded cable detection with 50 Hz frequency using route tracing coil (CFL PP3+)
  • Large LCD display with backlit facility
  • Internal Li-ion chargeable battery
  • Specially made light weight case ensuring minimum strain to operator
  • Water resistant and dust proof design
  • User friendly and simple operation

TECHNICAL DATA

Full Product Specifications

ParametersCFL PP3CFL PP3+
ChannelsAcoustic and magnetic
FunctionCable Route Tracing and Fault Pin-pointingCable Route Tracing, Fault Pin-pointing and Live loaded cable detection
Operating PrincipleCoincidence Method
Gain>120dB adjustable for both Acoustic and Magnetic
Frequency Range70 Hz to 3000 Hz with automatic filtering
Headphone3.5mm jack
Rechargeable Battery7.4 V Li-ion11.1 V Li-ion
Power supply90V-270V AC, 50/60 Hz
Display5’’,Monochrome backlit LCD,240 x 128 pixel5.7’’, TFT Touch Screen, 320 x 240 pixel
Environmental-10 °C to 55°C, 95% RH (Non-Condensing)
Dimension230 x 140 x 170 mm231 x 90 x 135 mm
Weight1.5 kg1.2 kg
