HISAC Ultima

Circuit Breaker Dynamic Test System

Product successfully added to the Quote List

HISAC Ultima – Circuit Breaker Dynamic Test System from SCOPE. The ultimate solution for testing Circuit Breakers of all types. HISAC Ultima is the complete analyser for checking the dynamic performance of circuit breakers in live EHV switchyards upto 765kV.HISAC Ultima can carry out Dynamic Contact Resistance Measurement on SIX breaks of THREE poles in one operation thereby significantly reducing stress on circuit breaker & testing downtime.It offers flexibility to create pre-programmed Test Plans including all test settings for all types of circuit breakers available in a switchyard that can simply be recalled at the time of actual testing. This saves you from doing all settings in switchyards.The analysis software offers a range of utilities which enables effective Condition Monitoring of circuit breaker by comparing present test data with previous test data and predicting future performance.

Key Features & Capabilities

Tests all types of circuit breakers – LV, HV, EHV & UHV for all critical performance parameters of all the poles / breaks in a single shot
Measures Main & PIR contact timings, bounce, non simultaneity of contacts and auxiliary contact timings
Analyses contact travel characteristics for speed, insertion, contact gap, over-travel and rebound with suitable transducer and mounting fixture
Records trip and close coil current characteristics
Registers the signature of Dynamic Contact Resistance of main and arcing contacts, of all the 6 breaks simultaneously
Displays test settings, graphical and tabulated test results
Prints test report in graphical format with test header and calculation footer, on external optional printer
Incorporates powerful Windows based Test Manager Software to control & operate instrument; view, analyse and handle graphical test data on a laptop at high resolution
Selects pre-programmed setup parameters and pass/fail limits through software
Connects to circuit breaker with wear resistant test leads of adequate length, having quick-fit connectors, suitable for EHV circuit breakers

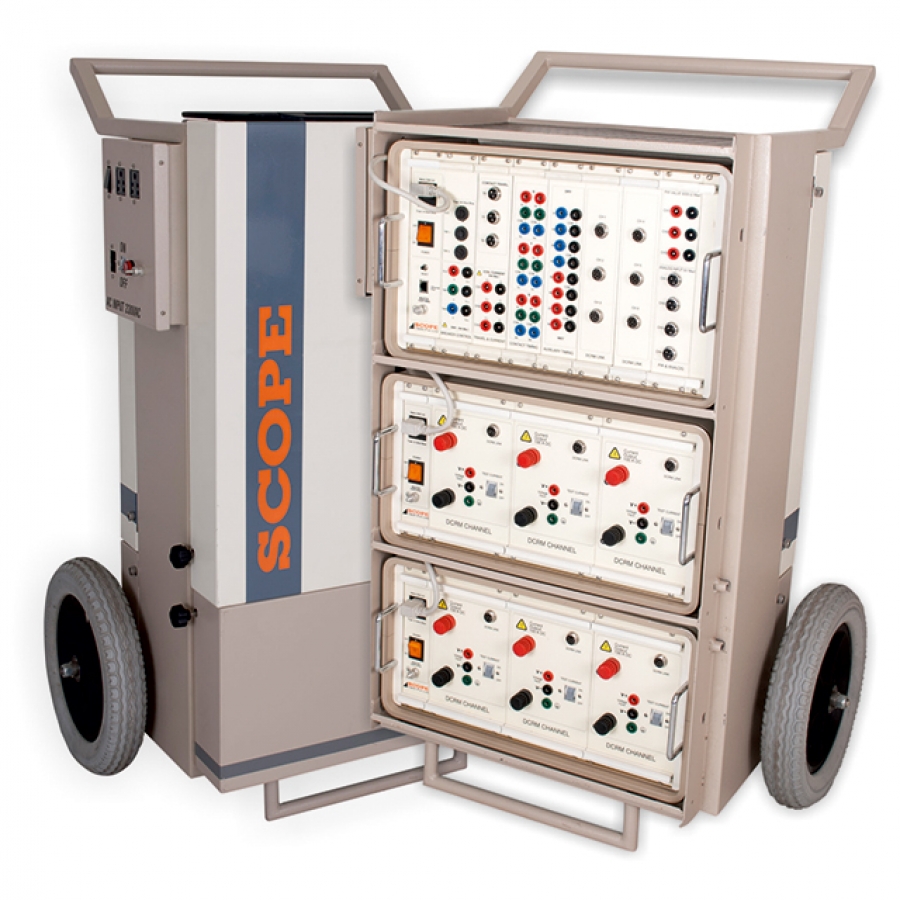

Moves easily within switchyard as the set can be mounted on a specially designed Trolley having large wheels & mains supply distribution board
Travel – For evaluating travel characteristics of operating mechanisms, SCOPE offers rotary and linear resistive travel transducers with universal / specially designed fixtures to suit a variety of CBs

DCRM module captures dynamic variation in contact resistance of main & arcing contacts during breaker operation
Each DCRM module has in built independent isolated, rechargeable battery based 100A DC source The result is plotted in graphical form on the software screen, which can be further analysed for finding parameters such as contact gap, total insertion, arcing tip insertion, main and arcing contact resistance values
Additional optional modules are available to measure PIR value and for monitoring Station DC (Coil voltage), Motor current or other static parameters through configurable Analog channels
Type Tested as per IEC 60068-2, IEC 61326-1 & IEC 61010-1. CE marked

TECHNICAL DATA

Full Product Specifications

Parameters	HISAC Ultima
Trigger Options	C, O, C-O, O-C, O-C-O
Contact Timing Channel	24 : 4 Main + 4 PIR per pole, 3 pole simulta- neously
Auxiliary Contact Timing Channel	8 : 4 Dry + 4 Wet Expandable up to 6 Dry + 6 Wet
Best Time Resolution	50μS
Coil Current Channel	3/6 : Trip / Close coil current
Travel Channel	3/6 : Travel characteristic
Analog Channel for DCRM Input (Optional)	1 / 2 / 3 / 6 – as per DCRM modules selected
DCRM Resistance Range & Current (Optional)	1000 / 2000 / 4000 / 8000 μΩ Selectable, Current 100A DC
Static Contact Resistance (CRM) Channel	As per DCRM modules selected
CRM Resistance Range	1000 / 2000 / 4000 / 8000 μΩ Selectable
Configurable Analog Channel (Optional)	Up to 6 : For inputs of station battery voltage, PIR value, motor current.
PIR value Measurement (Optional)	0 – 5000Ω with the resolution of 1Ω
Sampling Speed	1 / 2 / 5 / 10 / 20 kC Selectable
Display	Display of laptop
Operation	Interactive menu through laptop
Communication Port	Ethernet
Printer	External through laptop (Optional)
Memory	Memory of laptop
Dimensions	HISAC Ultima – 500 x 270 x 300 mm, DCRM Rack – 500 x 270 x 250 mm
Instrument Weight	HISAC Ultima – 12 kg Ultima DCRM Rack – 18 Kg (3 DCRM modules per Rack)

Input Power

110 V/230V AC ± 15%, 50/60 Hz ± 10%
