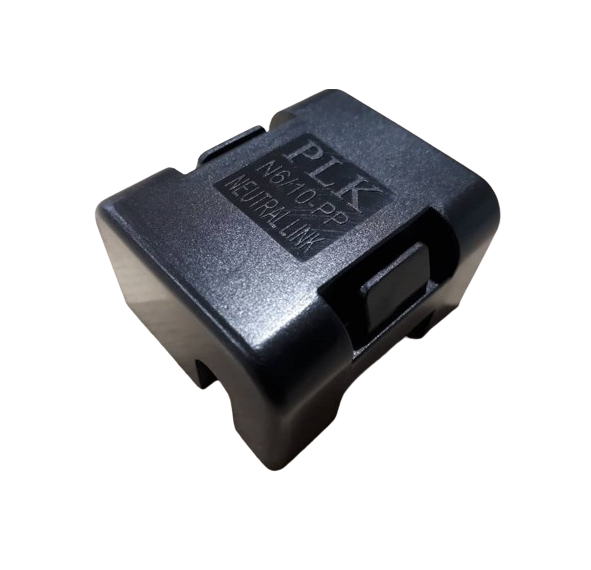

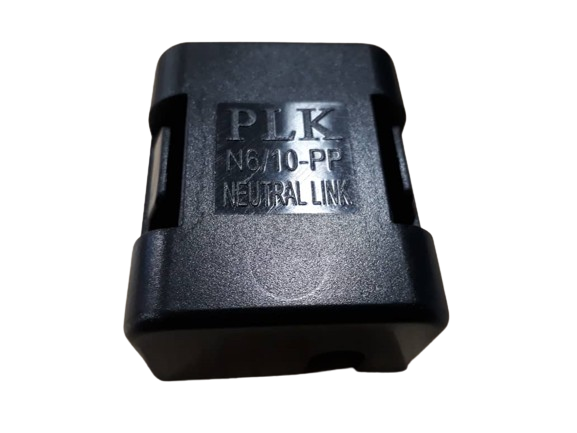

Neutral Link

Application on 1-Phase & 3-phase, 50 Hz multiple neutral earthed system

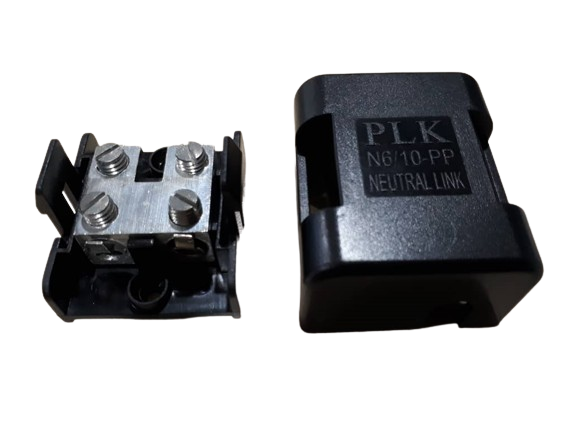

Neutral link 100A was designed for continuous operation on a 3-phase, 415V, 50 Hz multiple neutral earthed system.Housing Made from weather and UV resistant, fire retardant insulating material. A hole/slot each at the top and bottom.Manufactured in 2 parts i.e., top cover and base molding. Sealing provided to seal the top cover to the base Base moldingTerminal Block Connector Design with a hole Internal Diameter = 9mm, at least 2 pinching screws/stud of 8mm(M8) per hole, with incoming and outgoing hole. Inner side of hole is with threaded.Pinching screw and terminal shall made of tin plated brass. Pinching screw and terminal shall be electro- tin plated in accordance to BS 1872. Filled sufficient quantity of electrical conductive oxide inhibiting compound.

TECHNICAL DATA

Full Product Specifications

  • Description – 100A Neutral link
  • Voltage – AC 250/415V 50Hz
  • Number of Screw – 4
  • Color – Black
  • Manufactured – Malaysia

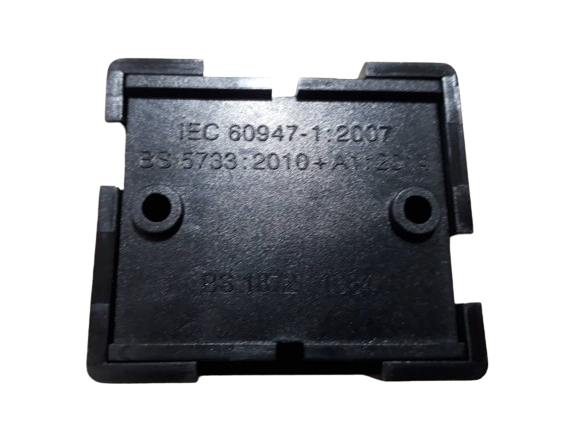

  • Comply To – IEC60947-1:2007
