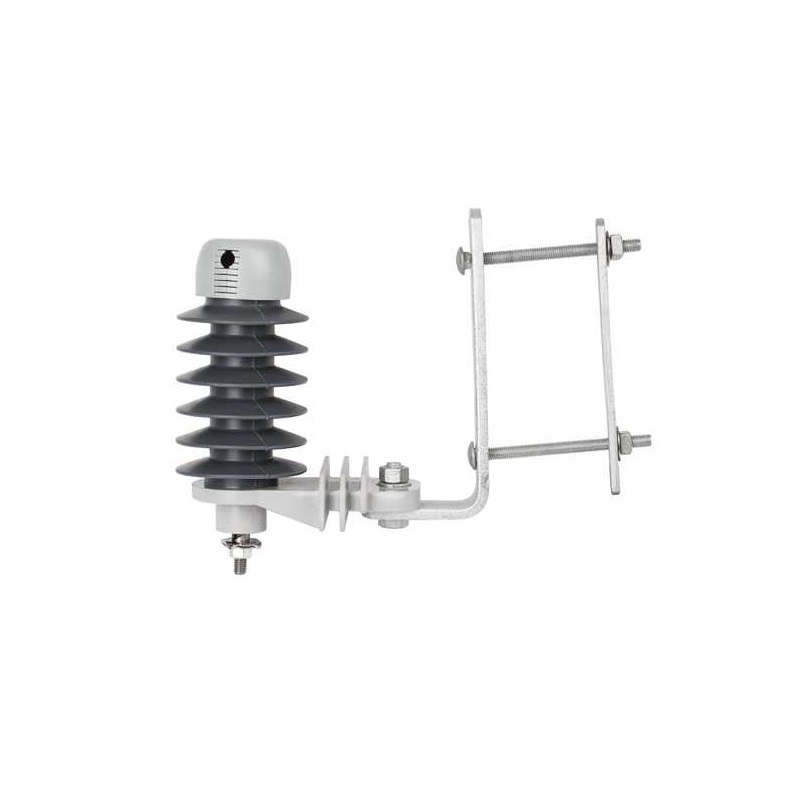

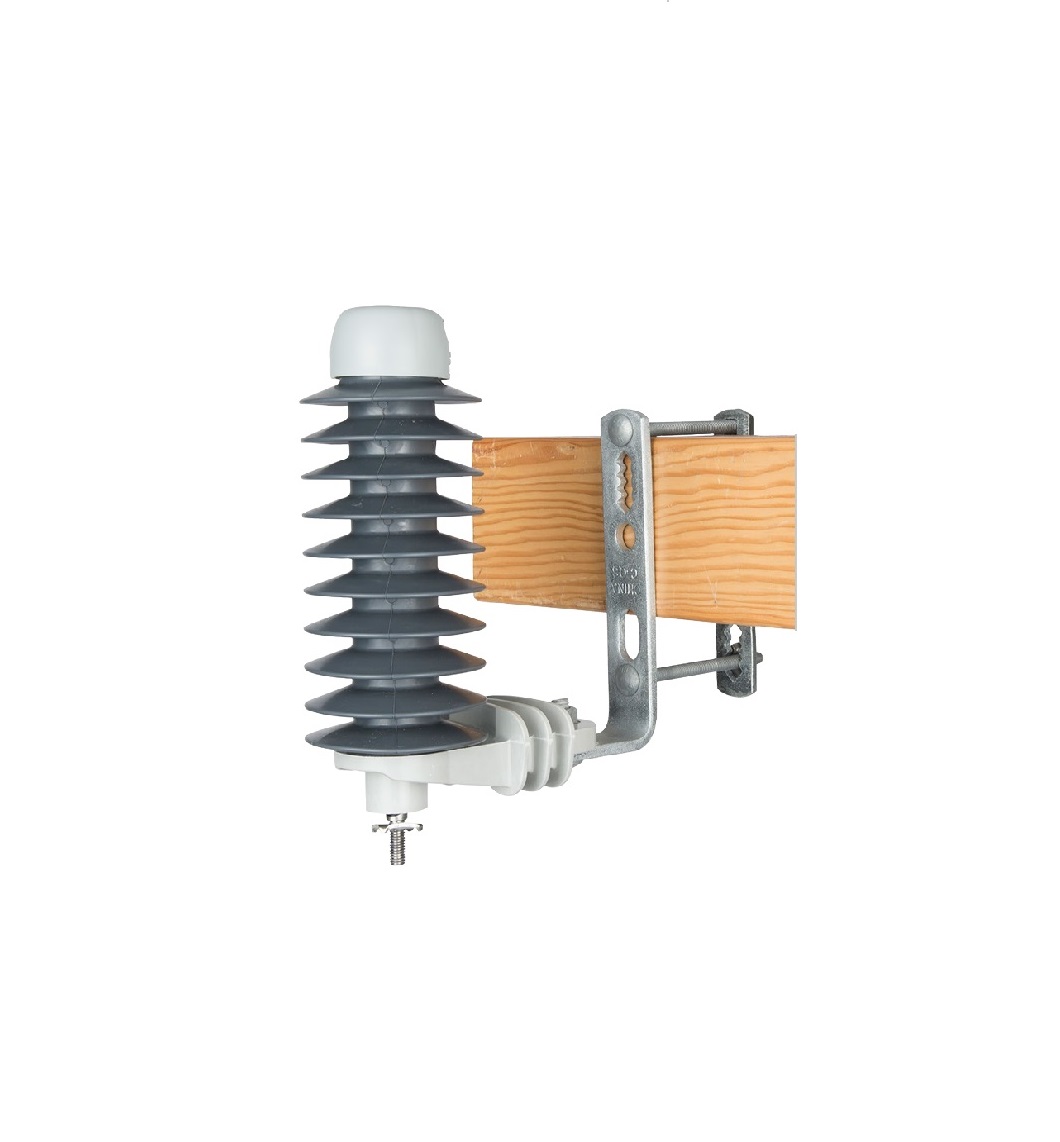

MV Arrester
MV Arrester - Image 2
MV Arrester - Image 3

MV Arrester

Distribution High (DH) & Station Low (SL)
  • Brand : Hubbell
  • Model : PDV 100 Optima and PVI-LP
Hubbell offers both IEEE and IEC compliant distribution arrester products. The application may dictate the use of a different design to handle excessive lightning duty, high TOV or offer superior equipment protection.Distribution  arresters are commonly applied on system voltages from 3 – 46 kV. Use this guide to help select the correct arrester classification for your specific application. Other designs are available for unique applications.

IEC Class Station Medium Polymer Housed Surge Arrester

High quality solid-core station class arresters qualified to both IEEE and IEC arrester standards

  • PVI-LP arresters comply with the latest revision of IEC 60099-4
  • Long lasting ESPTM housing material with superior mechanical strength and electrical characteristics
  • Robust sealing system protects internal components from moisture ingress to extend service lifetime
  • High quality MOV discs made in Wadsworth, Ohio since 1978

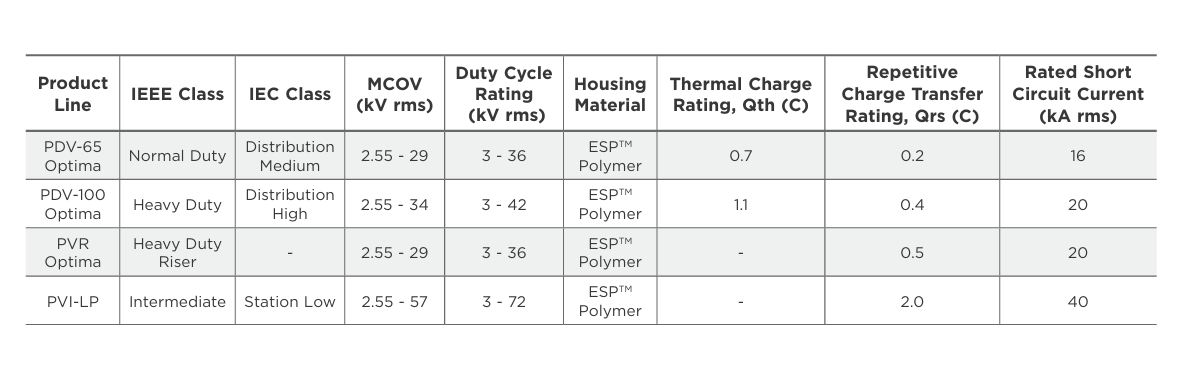

TECHNICAL DATA

Full Product Specifications
