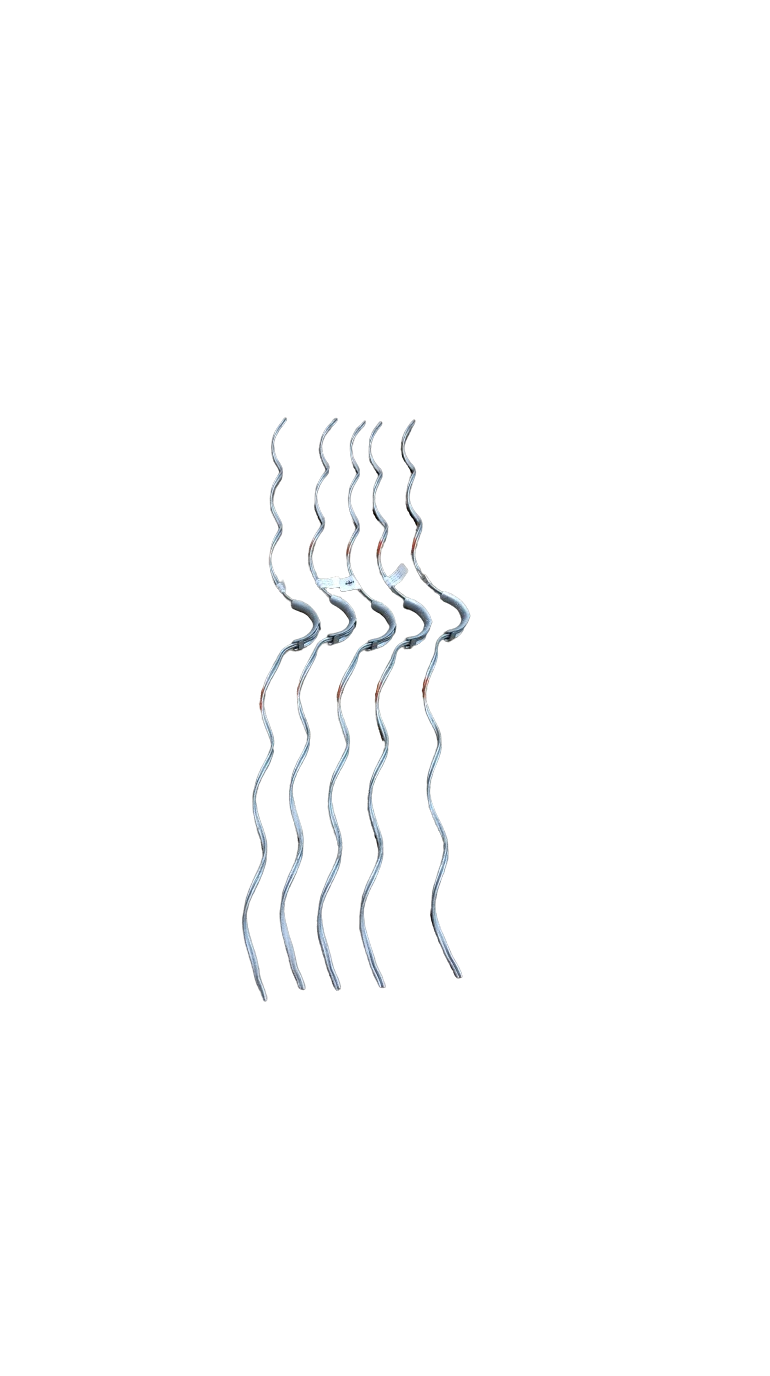

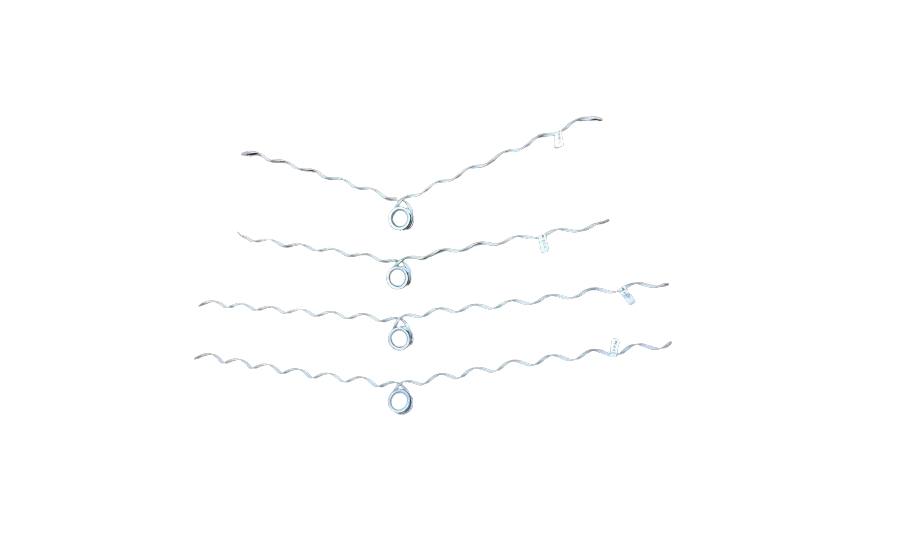

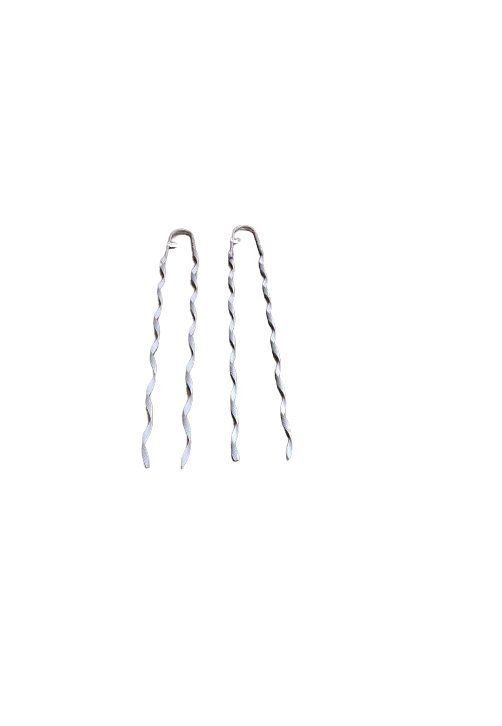

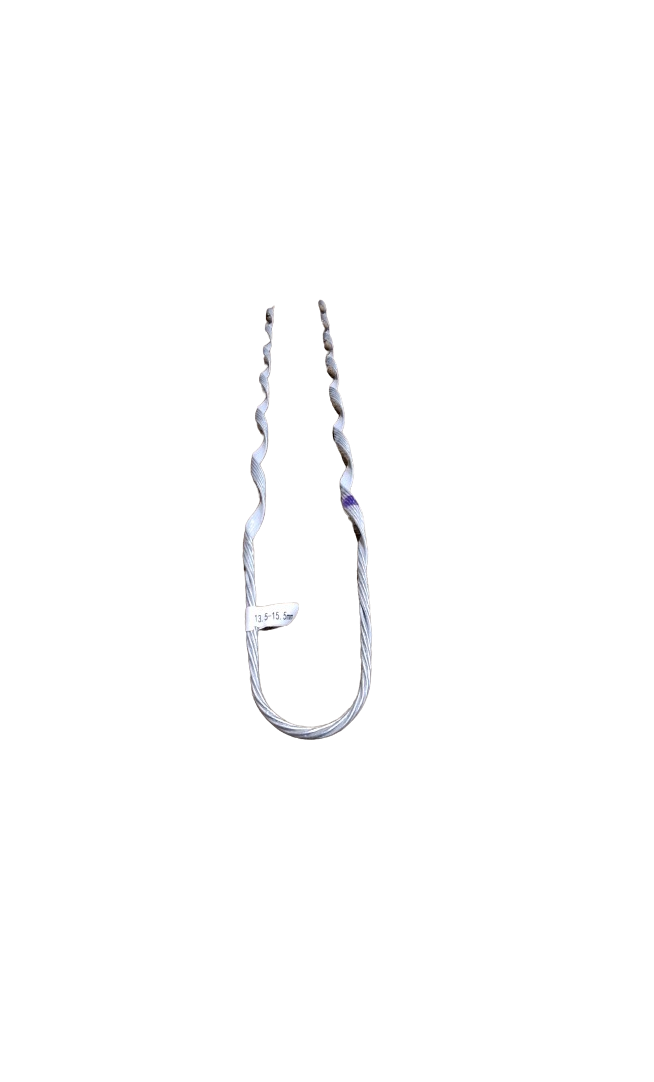

The helically preformed grip is used to hold/pull/tension the galvanized steel stay wire in the installation of the 33/22/11 kV overhead line systems such as pole and tower.
An insulator that is used in distribution networks that works with low voltage is known as a shackle insulator. This insulator is also known as a spool insulator. These insulators can be worked in two positions like horizontal otherwise vertical.
Our products have been used in the telecom and electrical industry since our inception in 1997. These products are still in operation since their installation, which reflects the quality and robustness of these products.We have local facility for metal stamping, shearing, punching, drilling, welding and assembly. Product coating used is hot dip galvanized that comply to BS EN 1461.For Telecommunication we have Eye bolt, clamp pole iron, clamp terminating , clamp pole concrete, clamp pole headring pole iron and pole concrete, thimble open small, stay rod set, stay plate, Hook clamp IB no 1 & no 2, Integral Bearer Clamp no 1 & no 2 and bridle ring
Neutral link 100A was designed for continuous operation on a 3-phase, 415V, 50 Hz multiple neutral earthed system.Housing Made from weather and UV resistant, fire retardant insulating material. A hole/slot each at the top and bottom.Manufactured in 2 parts i.e., top cover and base molding. Sealing provided to seal the top cover to the base Base moldingTerminal Block Connector Design with a hole Internal Diameter = 9mm, at least 2 pinching screws/stud of 8mm(M8) per hole, with incoming and outgoing hole. Inner side of hole is with threaded.Pinching screw and terminal shall made of tin plated brass. Pinching screw and terminal shall be electro- tin plated in accordance to BS 1872. Filled sufficient quantity of electrical conductive oxide inhibiting compound.
IPC is used for simultaneous penetration of insulation on LV ABC conductors and for connecting of conductors for street lighting. Connector is manufactured in such way that it enables connection of LV ABC and branch conductor regardless of whether it is an aluminum or copper conductor. The body of the connector is made of Heat and UV resistant plastic and the elastomer insert eliminates the appearance of electrolytic corrosion since it prevents the appearance of moisture at contact points. The contacts are protected with electric contact grease. Mounting under voltage is possible but with mandatory use of adequate protection equipment. Ring-spanner or tubular spanner.
