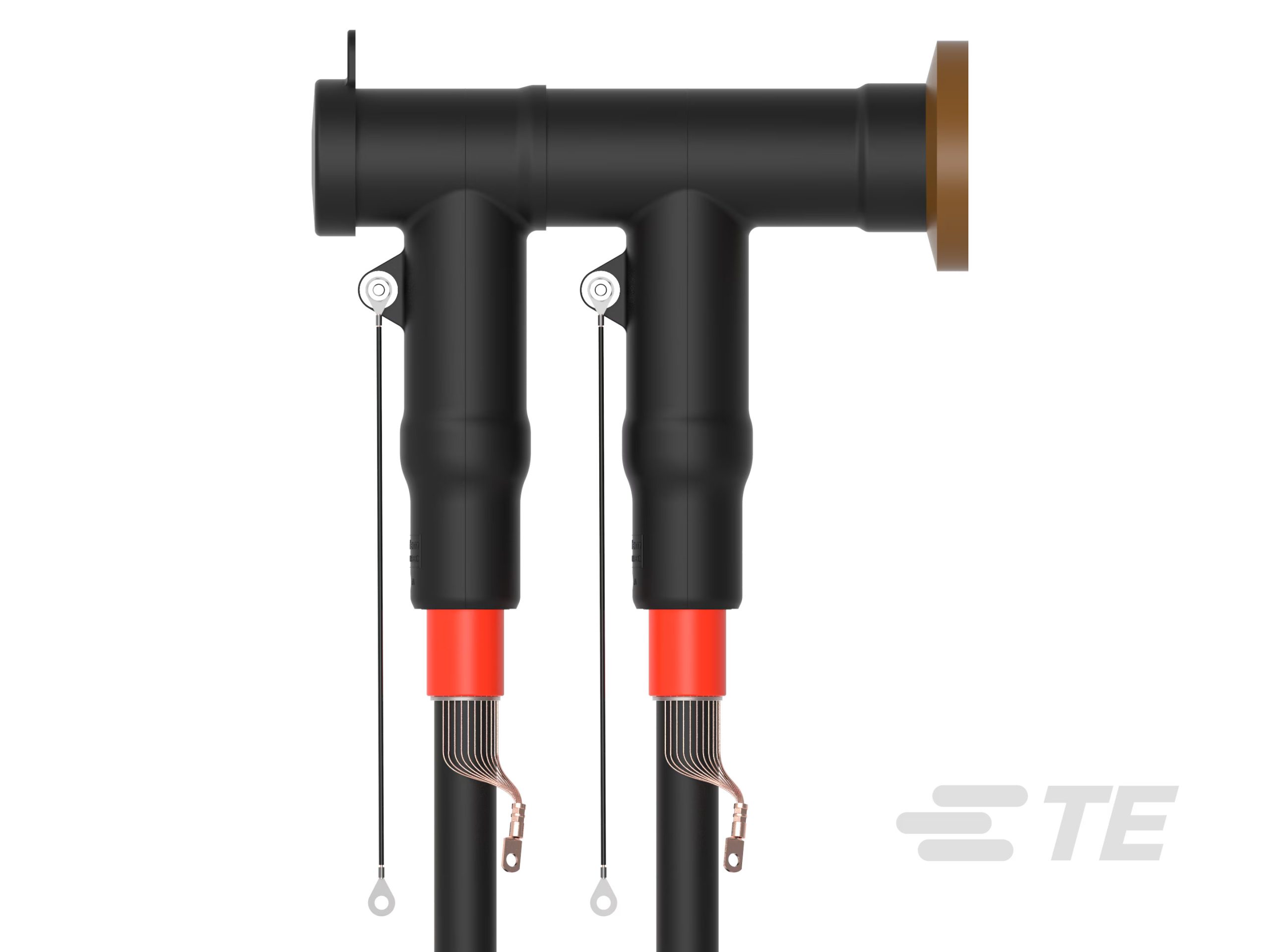

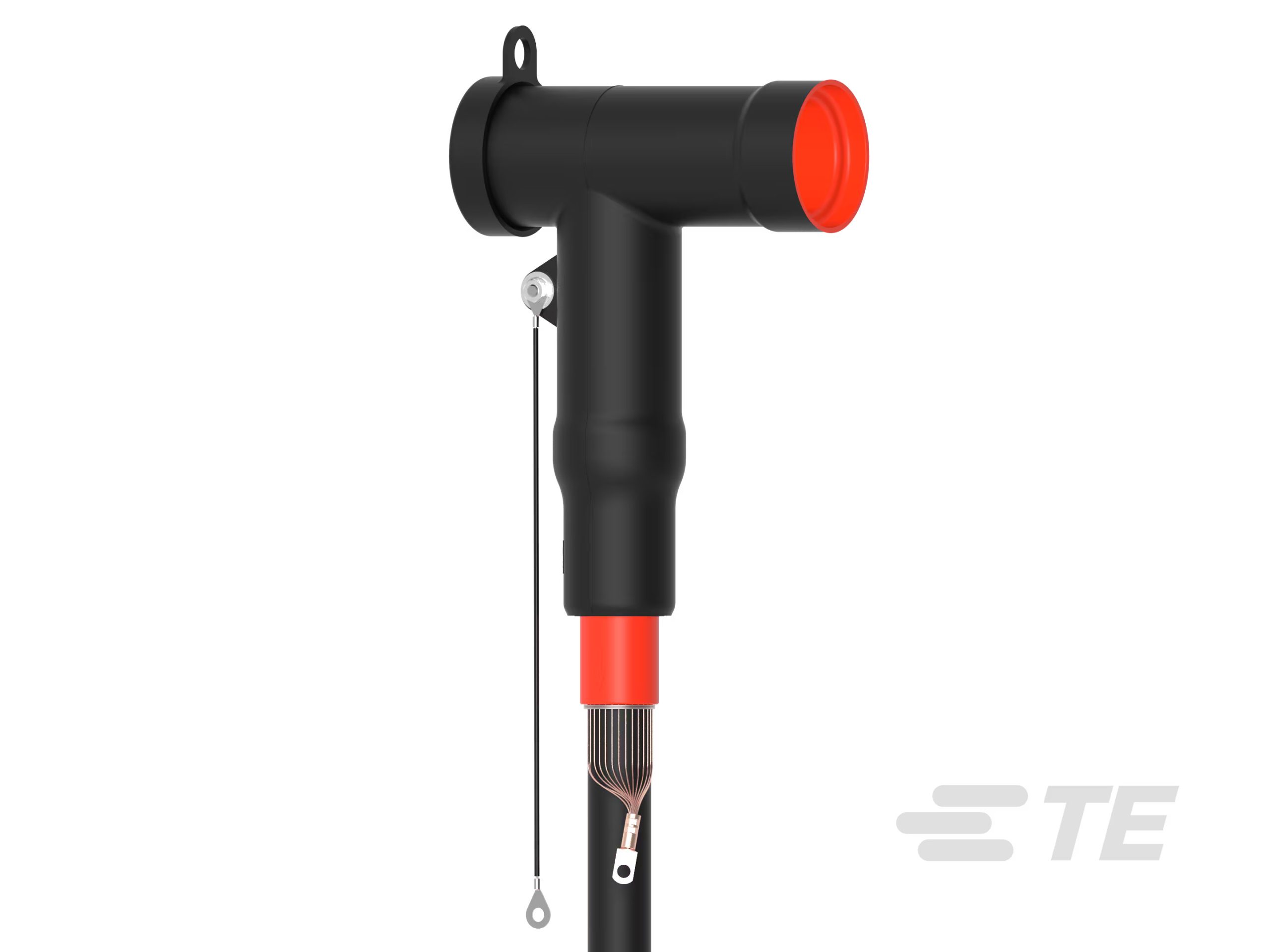

Screened Separable Connector Plug On

Raychem Plug-in Terminations RPIT separable connectors are compliant with CENELEC HD 629.1.S2:2006-A1:2008 (up to 42 kV) and IEC 60840 (52 kV). The terminations incorporate a high-quality contact system, ensuring a reliable current transmission from the cable conductors to the busbars. The electrical interfaces between the silicone stress relief cone to the cable and bushing are kept permanently sealed using a pressure component. This element is housed in the protection cover, which is sealed with heat shrink tubing.The installation and plug-in of the inner cone terminations is simple, using a silicone component which is compatible with industry-wide standards. TE also offers a full line of other RPIT accessories such as bushings, insulating caps and up-to-date testing tools to meet the needs of our customers.

The LV outdoor feeder pillar DIN type from Shamawar Technica is designed especially for continuous operation on a 3 phase, 4 wire, 50Hz Directly Earthed Neutral system designed to withstand a prospective symmetrical fault current. Suitable for use in the tropical zone, with a maximum ambient temperature of 40 C and a mean annual temperature of 28 C with heavy rainfall and high humidity of up to 100%. Additional real-time load reading data logger is equipped to provide the facility for real-time load reading provision directly displayed by the digital meter on site and by online integration.
