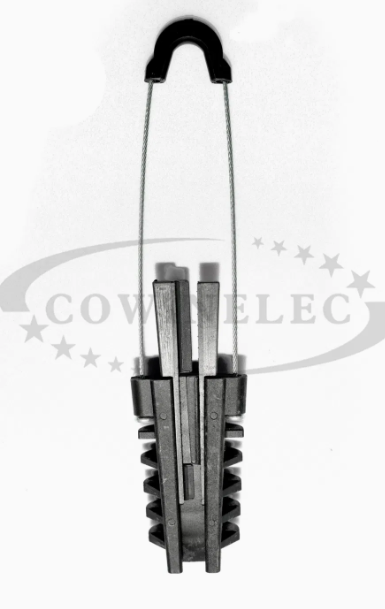

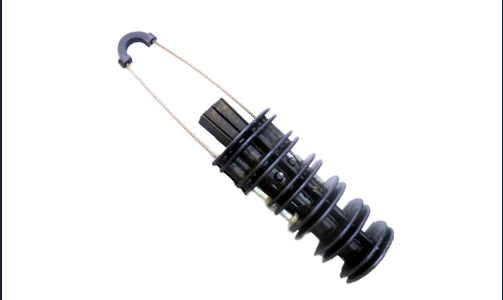

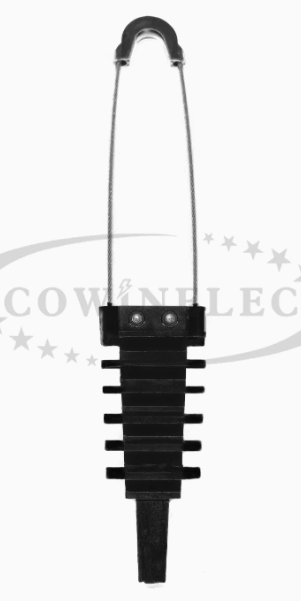

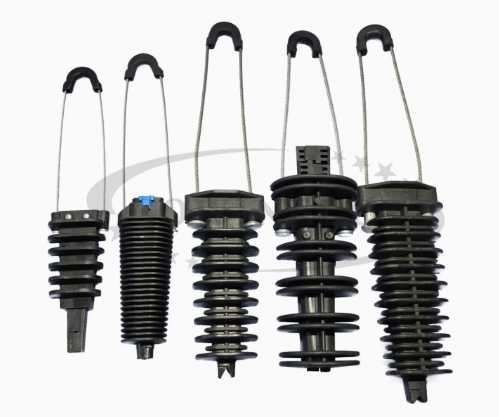

Lv Dead End Clamp
Lv Dead End Clamp - Image 2
Lv Dead End Clamp - Image 3
Lv Dead End Clamp - Image 4

Lv Dead End Clamp

The Low Voltage (LV) Dead End Clamp is designed to be used as terminal ending for overhead lines for poles and walls. It is also used to support aerial bundled cable (ABC) accessories for low voltage (LV) distribution system terminal section. The whole assembly has no loose parts and it does not require special tool to install.

TECHNICAL DATA

Full Product Specifications

TypeCross-Section(mm^2)Messenger Dia.(mm)Breaking Load(kN)
CEC-PA256-254-8CEC3.5
CEC-PA5010-506-116
CEC-PA7025-708-148
