FEATURES

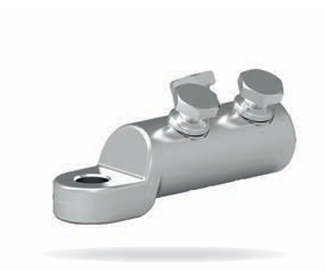

TE Connectivity’s Shear Bolt connectors
are range-taking mechanical terminal
connectors.Just six connectors will ac
commodate a wide range of aluminum
and copper conductors from 25 mm2
stranded and solid to 500 mm2 circular
stranded class 2.Just six connectors will accommodate
a wide range of aluminum and copper
conductors from 25 mm2 stranded and
solid to 500 mm2 circular stranded
class 2.
APPLICATIONS
Used for low and medium voltage
application up to 42 kV
Shear Bolt connectors are ideally suited
for aluminum to aluminum, aluminum
to copper and copper to copper
applications making them the universal
connector solution
The only tool required to install the
connector is a standard ratchet
wrench with the appropriate sized
hexagonal sockets. The connector
design incorporates shear head bolts,
which ensures that the correct torque
is applied
The removable inserts in the connector
body centralize smaller conductor
sizes. For larger sizes, inserts are not
required and are easily removed with
a standard screwdriver. Shear Bolt
connectors meet the electrical and
mechnical requirements IEC 61238-1.
A holding tool is recommended to
avoid core bending of conductors and
can be ordered from TE Connectivity
