Connectors for connecting underground cables to RMU’s, switchgear and transformers
Screened Separable Connector Plug On
Product Description

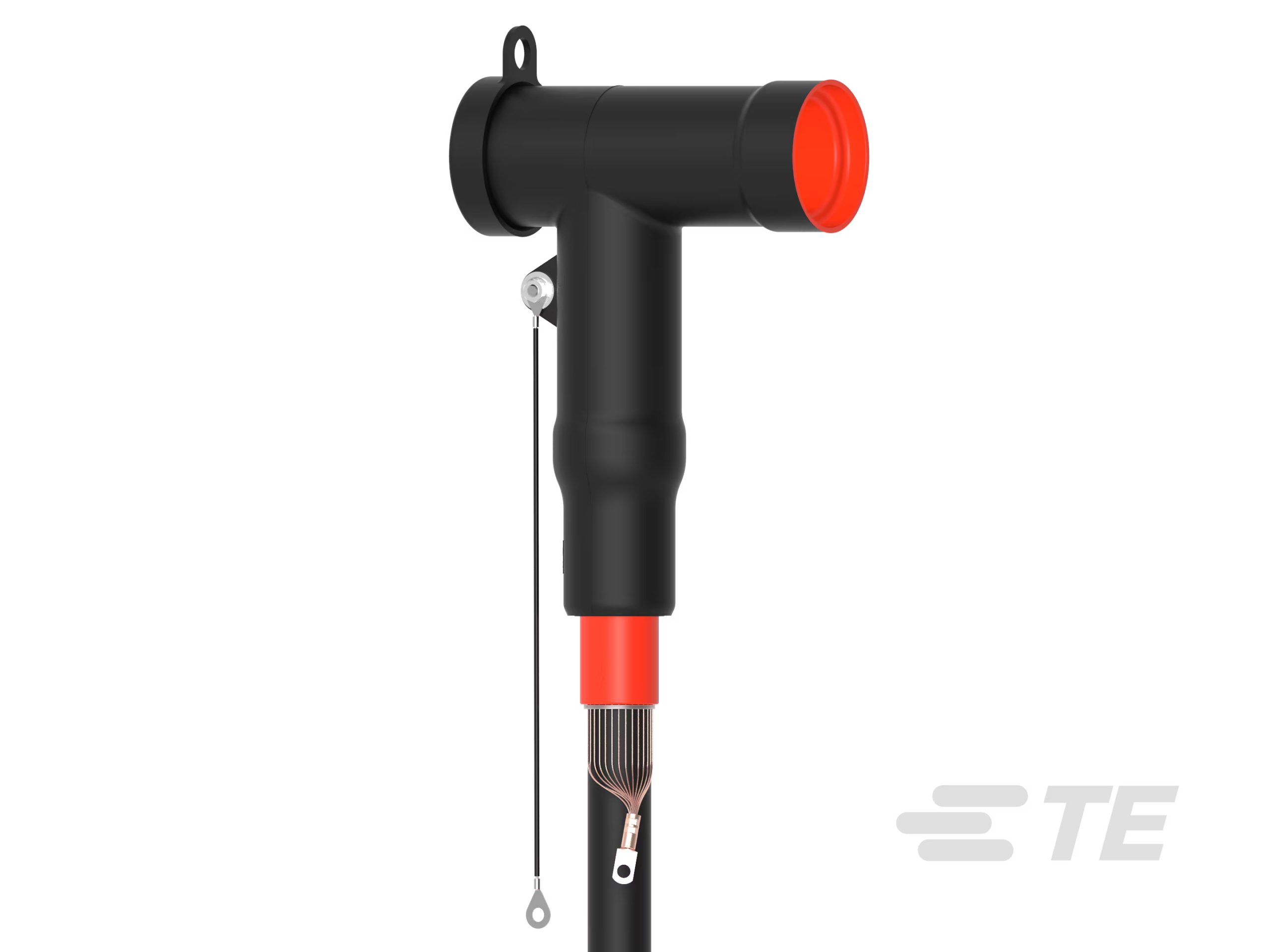

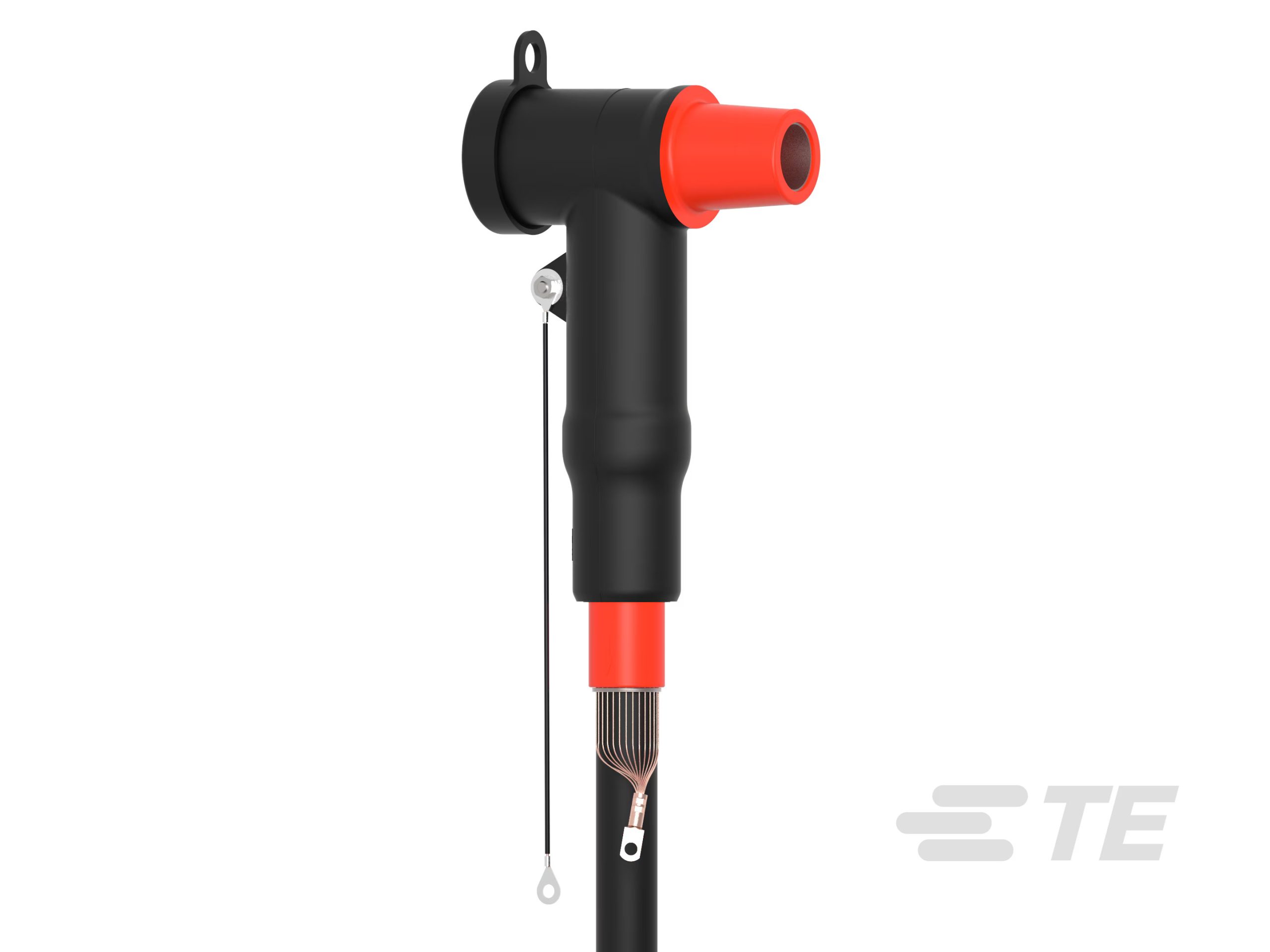

TE Connectivity’s (TE) Raychem Screened separable T-connectors
RSTI-58 are designed to connect single and three-core polymeric cables
to medium voltage gas insulated switchgear and other equipment using
bushings type “C” (EN50180/EN50181) specified for 630/1250A
up to 24 kV.
Made of a highly modified silicone rubber and protected by a thin-walled,
grounded outer conductive screen, TE’s Raychem RSTI-58 connectors
are equally suited for indoor and outdoor installation. Supporting a wide
application range, the design incorporates one body and stress cone
adapters to cover any cross-sections from 25 mm2 to 300 mm2. The overall
cut-back dimensions are designed to take up minimum space in the
terminal box.

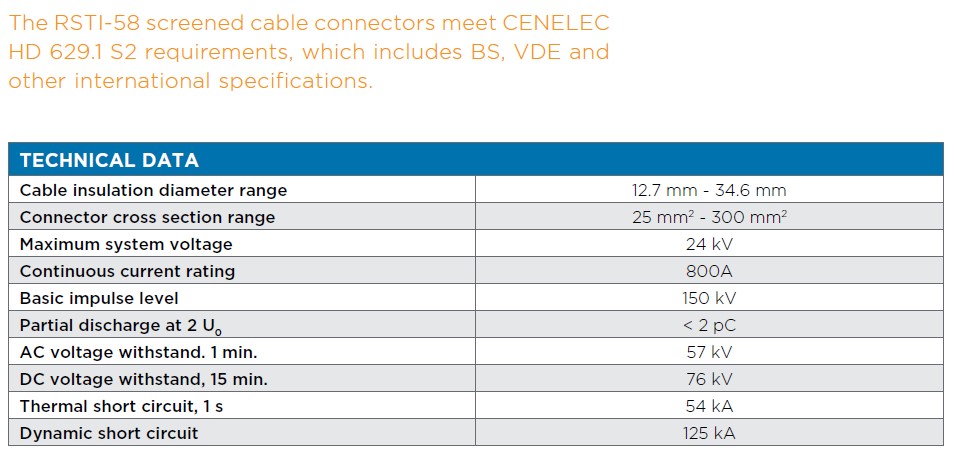

Product Technical Specification
BRAND: TE (APAC)
KEY FEATURES
- Screened connector does not need to be removed for over sheath testing
- Wide application range covers cable cross sections from 25 mm2 to 300 mm2
- Easy access rear plug with capacitive test point
- Insulation made of highly modified silicone rubber

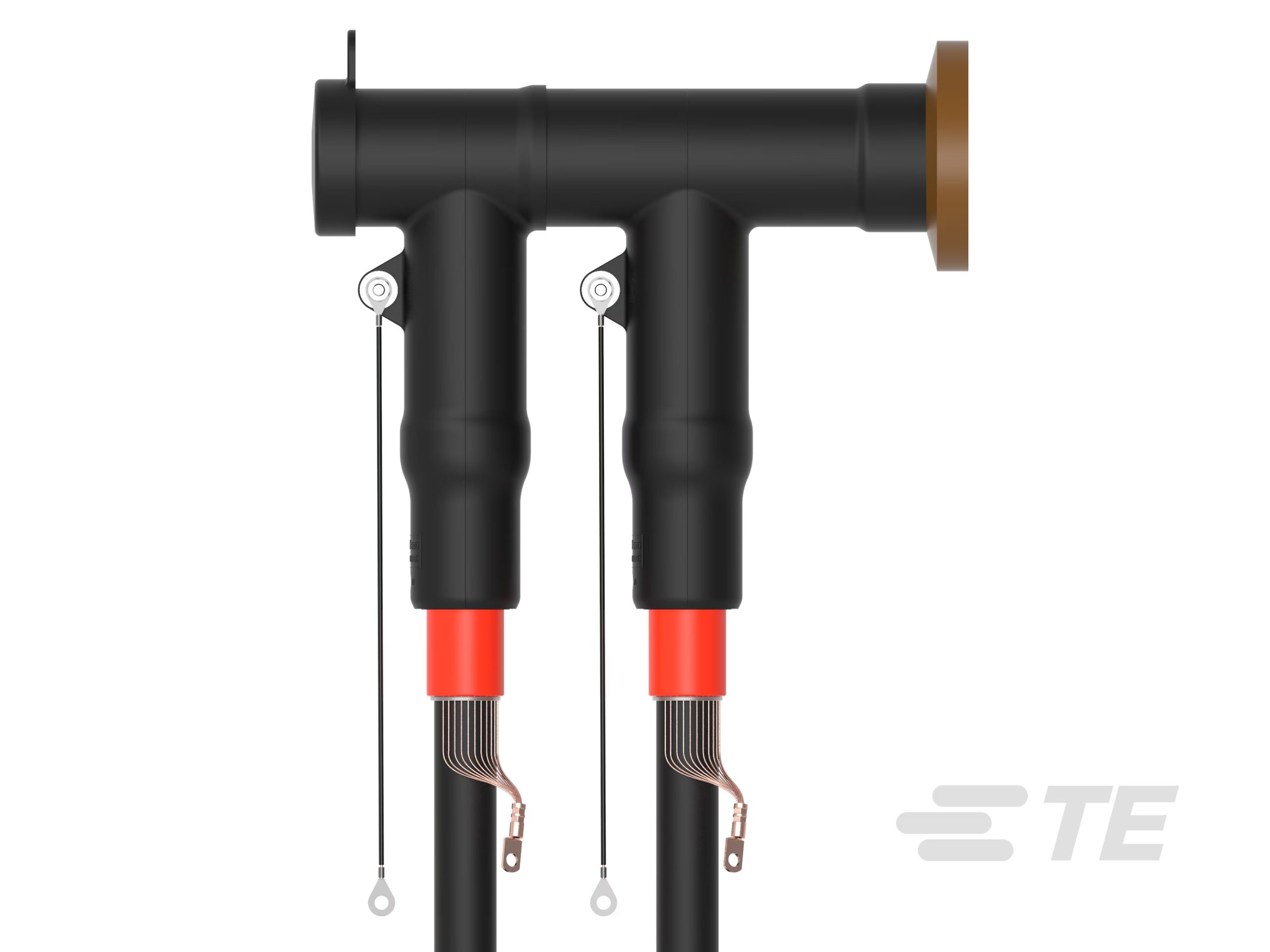

- Compact design supports use of double “T” connections inside standard terminal boxes
- Unlimited shelf-life
