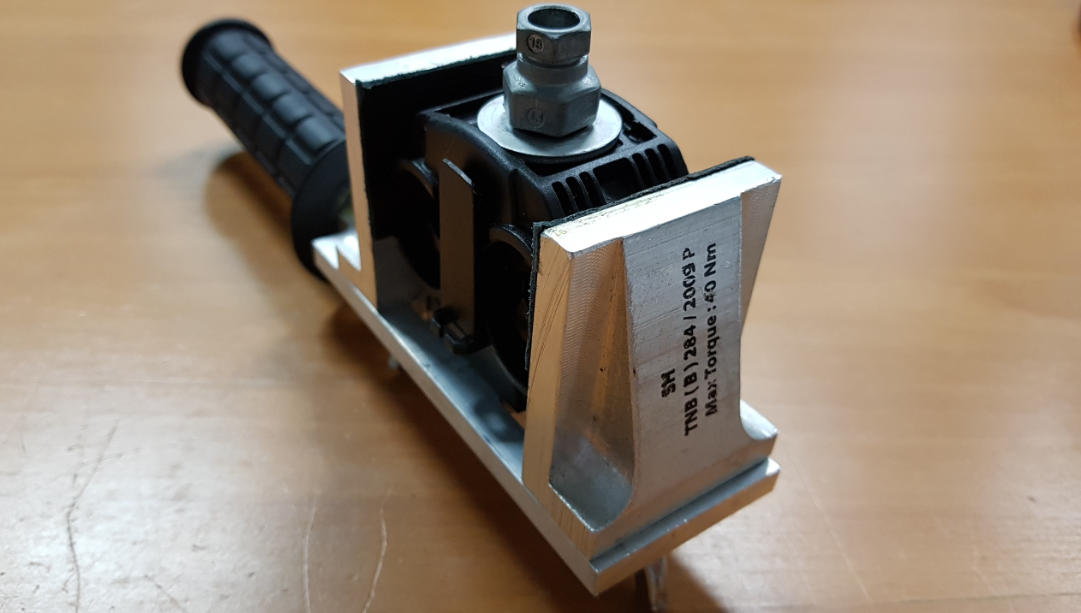

Insulated Piercing Connector (IPC) Holder

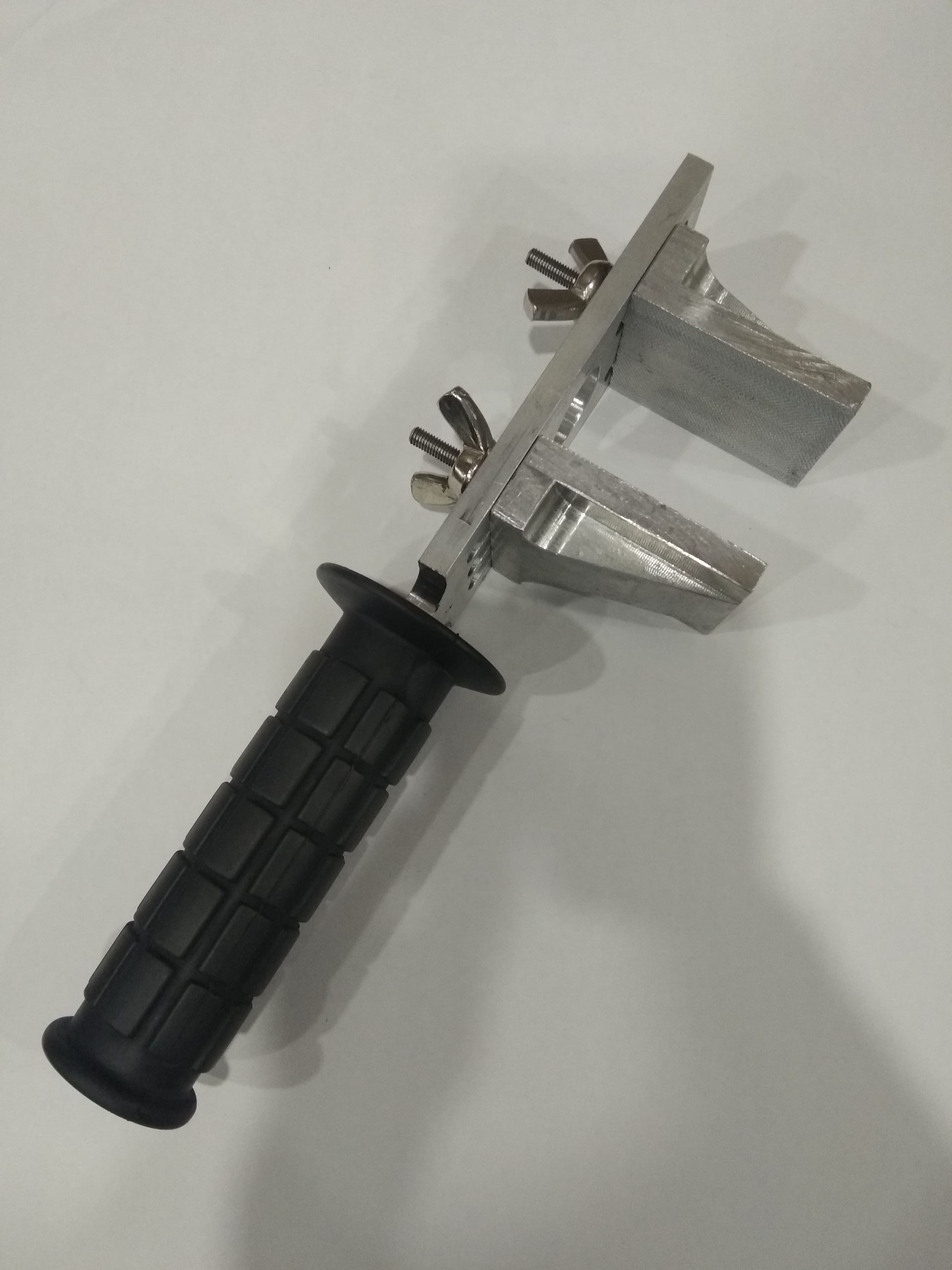

Insulated Piercing Connector (IPC) Holder - Image 2

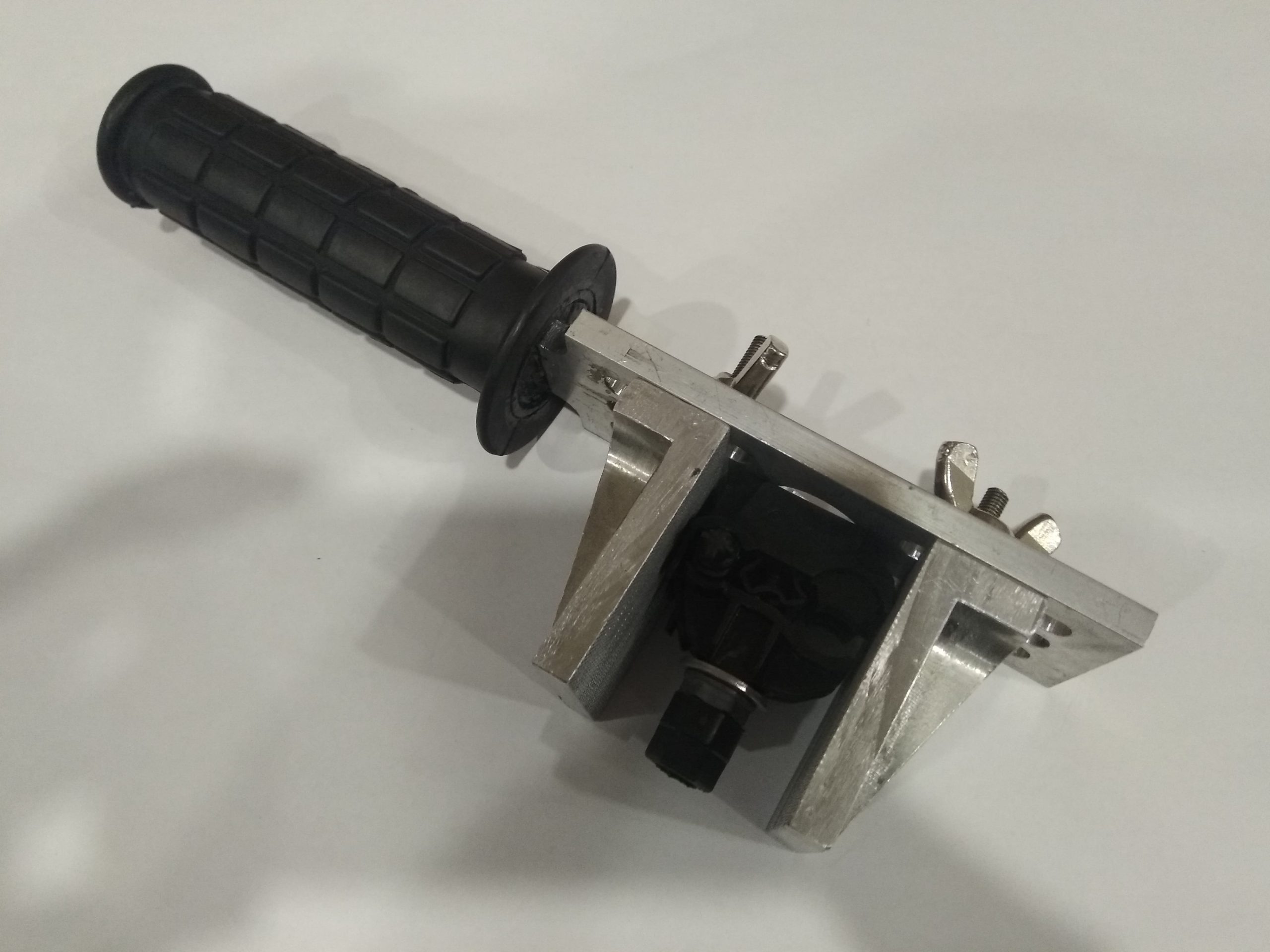

Insulated Piercing Connector (IPC) Holder - Image 3
Insulated Piercing Connector (IPC) Holder - Image 4
Insulated Piercing Connector (IPC) Holder - Image 5

Insulated Piercing Connector (IPC) Holder

for live maintenance work up to 1kVAC and 1.5kVDC

MODEL : IPCH-01

Insulating Piercing Connector Holder, IPCH-01 made from Aluminum Alloy high grade Tool was tested according to NFC 033-020:2013 and can with stand torque up to 40kN.
  • Weight : 450 g.
  • Minimum clamping jaw: 40 mm
  • Maximum clamping opening: 70 mm
