LV Arrester
LV Arrester - Image 2
LV Arrester - Image 3

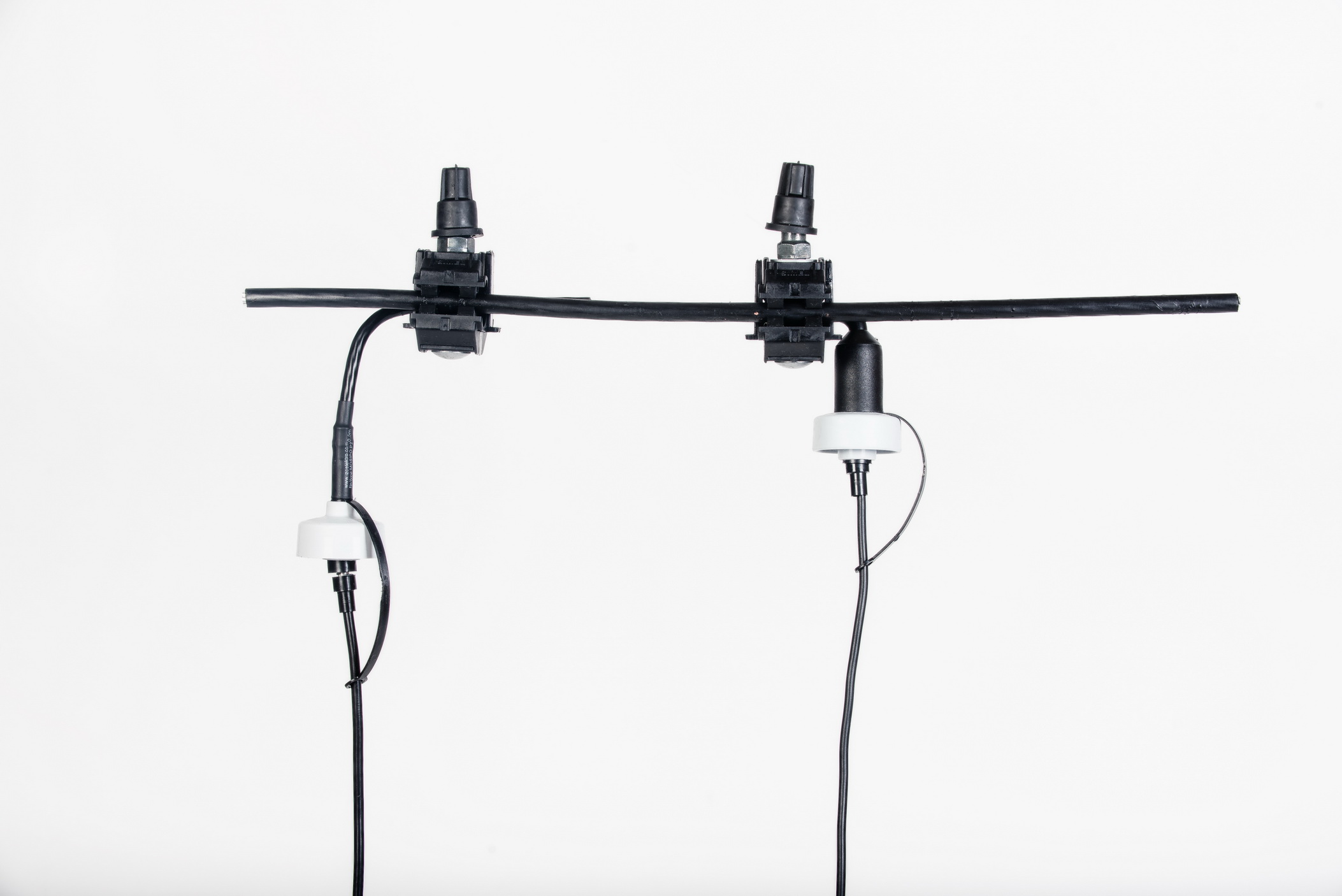

LV Arrester

low voltage power lines or junction boxes with voltages up to 1 kV



Low voltage metal oxide surge arresters with a silicone housing NNO and MOSPO are designed for installation in low voltage power lines or junction boxes with voltages up to 1 kV.They serve as the initial level of protection against surges and other transients. The varistors of low voltage surge arresters NNO and MOSIPO are directly molded by silicone rubber, providing them with a high level of ingress protection rated at IP 67.

IZOELEKTRO_catalogue-LV-Arrester-16-21

TECHNICAL DATA

Full Product Specifications

  • Brand : Izoelektro
  • Model : NNO, MOSIPO
  • Voltage levels: 275 V, 280 V, 360 V, 440 V, 690 V
  • Earthing conductor: H07V-K 6 mm2
  • Ambient temperature range: T = -60 °C … +85 °C
  • Ingress protection level: IP 67
  • Response time: tA < 25 ns
  • Housing: silicone rubber
  • Silicone colour: grey
  • IEC class: II
  • Tested according to standards: IEC 61643-1 and IEC 61643-11a
